ADN4665ARUZ - Analog Devices

Description: Analog Devices ADN4665ARUZ, LVDS Transmitter Quad CMOS/ TTL LVDS, 3 → 3.6 V, 16-Pin, TSSOP

Download ADN4665ARUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

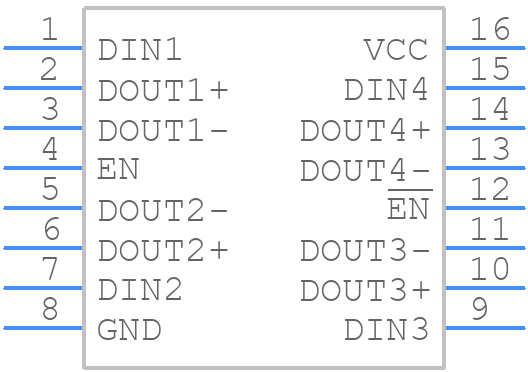

ADN4665ARUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADN4665ARUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
ADN4665ARUZ - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

ADN4665ARUZ Details

  • Manufacturer Part Number:

    ADN4665ARUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    4

  • High Level Input Current-Max:

    0.00001 A

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    EIA-644; TIA-644

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    0.25 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    2 ns

  • Width:

    4.4 mm

ADN4665ARUZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADN4665ARUZ involves keeping the signal paths short, using a solid ground plane, and minimizing the distance between the device and the load. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper powering and decoupling of the ADN4665ARUZ, use a high-quality power supply with low noise and ripple. Add decoupling capacitors (e.g., 0.1 μF and 10 μF) close to the device's power pins, and use a 10 Ω to 22 Ω resistor in series with the power supply to prevent voltage spikes.
  • The ADN4665ARUZ can support data rates up to 3.2 Gbps, but the actual achievable data rate depends on the specific application, PCB layout, and signal quality. It's recommended to consult with Analog Devices' application notes and technical support for specific guidance.
  • To troubleshoot issues with the ADN4665ARUZ, use a combination of tools such as oscilloscopes, logic analyzers, and signal generators. Check the device's datasheet and application notes for specific troubleshooting guidelines, and consult with Analog Devices' technical support if needed.
  • Yes, the ADN4665ARUZ has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. Consult the device's datasheet and thermal management guidelines for specific recommendations.
