ADN4666ARUZ-REEL7 - Analog Devices

Description: Analog Devices Inc.3.3 V power supply temperature range of −40°C to +85°C 0/4 Receiver LVDS 16-TSSOP

Download ADN4666ARUZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

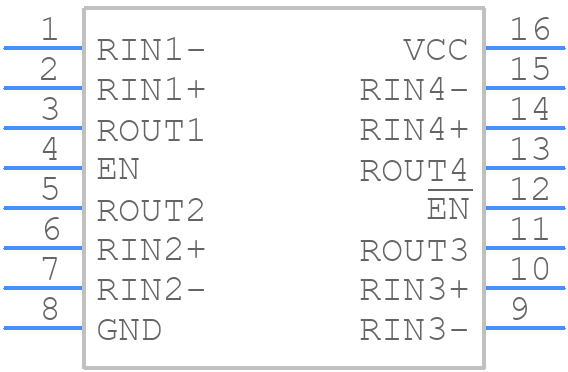

ADN4666ARUZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADN4666ARUZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16
click to zoom
3D Models
ADN4666ARUZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - RU-16
click to zoom

ADN4666ARUZ-REEL7 Details

  • Manufacturer Part Number:

    ADN4666ARUZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO153-AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    EIA-644; TIA-644

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Low Current-Max:

    0.002 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    3.3 ns

  • Receiver Number of Bits:

    4

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADN4666ARUZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADN4666ARUZ-REEL7 involves keeping the signal paths short, using a solid ground plane, and minimizing noise coupling. It's recommended to follow Analog Devices' application notes and layout guidelines for optimal performance.
  • To ensure the ADN4666ARUZ-REEL7 operates within its recommended operating conditions, verify that the supply voltage, temperature, and input/output signals are within the specified ranges. Also, ensure proper thermal management and decoupling to prevent overheating and noise issues.
  • To mitigate EMI and RFI when using the ADN4666ARUZ-REEL7, use proper shielding, grounding, and filtering techniques. Ensure that the device is placed in a shielded area, and use EMI filters or common-mode chokes to reduce emissions.
  • To troubleshoot issues with the ADN4666ARUZ-REEL7, start by verifying the power supply and input/output signals. Check for proper connections, soldering, and component placement. Use oscilloscopes or logic analyzers to debug the issue, and consult Analog Devices' application notes and support resources if needed.
  • The ADN4666ARUZ-REEL7 adheres to Analog Devices' quality and reliability standards, which include compliance with industry standards such as ISO 9001, IATF 16949, and AEC-Q100. The device is also built with high-reliability materials and manufacturing processes to ensure long-term performance and durability.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

ADN4666ARUZ-REEL7 Overview

Use the download button to access the ADN4666ARUZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADN46, or try a keyword search, such as Line Driver or Receivers
