ADN4666ARUZ - Analog Devices

Description: Analog Devices ADN4666ARUZ, LVDS Receiver Quad Single Ended Single Ended, 3 → 3.6 V, 16-Pin, TSSOP

Download ADN4666ARUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

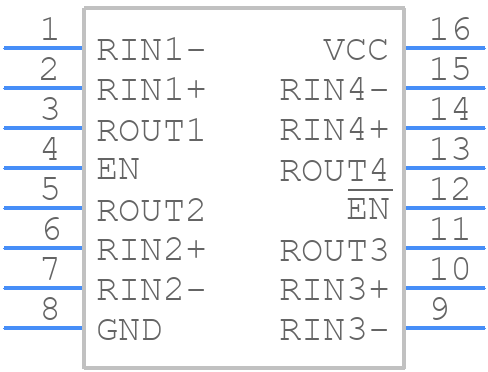

ADN4666ARUZ - Analog Devices - PCB symbol
