ADN4668ARZ - Analog Devices

Description: Analog Devices ADN4668ARZ, LVDS Receiver Quad CMOS/ TTL Differential, 3 → 3.6 V, 16-Pin, SOIC

Download ADN4668ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

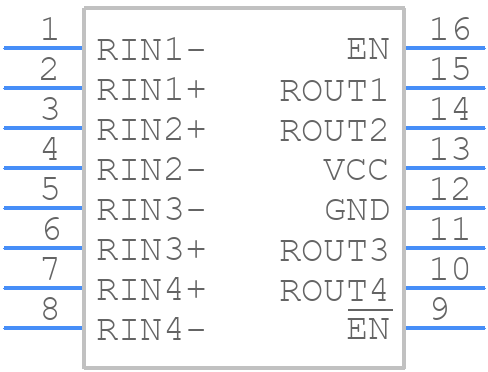

ADN4668ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADN4668ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - ADN4668ARZ
click to zoom
3D Models
ADN4668ARZ - Analog Devices - 3D model - Small Outline Packages - ADN4668ARZ
click to zoom

ADN4668ARZ Details

  • Manufacturer Part Number:

    ADN4668ARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MO-012AC, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    R-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    EIA-644; TIA-644

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Low Current-Max:

    0.002 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    2.7 ns

  • Receiver Number of Bits:

    4

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ADN4668ARZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADN4668ARZ involves keeping the signal paths short, using a solid ground plane, and minimizing the distance between the device and the load. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper powering and decoupling of the ADN4668ARZ, use a high-quality, low-ESR capacitor (e.g., 0.1 μF) between the VCC and GND pins, and a 10 μF capacitor between the VCC and GND pins for additional filtering. Also, ensure that the power supply is clean and well-regulated.
  • The ADN4668ARZ can support data rates up to 3.2 Gbps, but the actual achievable data rate depends on the specific application, PCB layout, and signal quality.
  • To troubleshoot issues with the ADN4668ARZ, use an oscilloscope to analyze the signal quality, check for signal reflections, and verify that the device is properly powered and decoupled. Also, review the PCB layout and ensure that it meets the recommended guidelines.
  • Yes, the ADN4668ARZ can be used in a differential signaling application, but it requires a differential signal transmission line and a differential receiver. The device can be configured to support differential signaling by connecting the OUT+ and OUT- pins to a differential receiver.
