ADN4692EBRZ - Analog Devices

Description: Analog Devices ADN4692EBRZ, LVDS Transceiver LVTTL/ MLVDS, 3 → 3.6 V, 14-Pin, SOIC

Download ADN4692EBRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

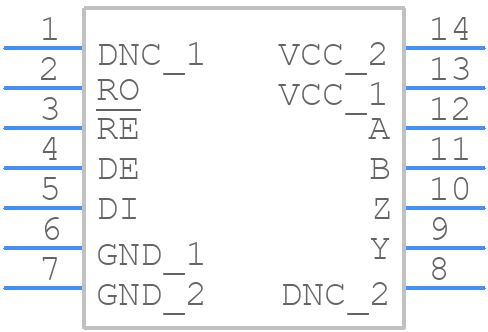

ADN4692EBRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADN4692EBRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-14 (SOIC)
click to zoom
3D Models
ADN4692EBRZ - Analog Devices - 3D model - Small Outline Packages - R-14 (SOIC)
click to zoom

ADN4692EBRZ Details

  • Manufacturer Part Number:

    ADN4692EBRZ

  • Source Url Status Check Date:

    2013-05-01 14:56:44.301

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    14

  • Manufacturer Package Code:

    R-14

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.00001 A

  • Interface IC Type:

    LINE TRANSCEIVER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    0.48 V

  • Output Low Current-Max:

    0.008 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    24 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    DMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

ADN4692EBRZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADN4692EBRZ involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the load. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper biasing, make sure to connect the VCC pin to a stable 3.3V or 5V power supply, and the GND pin to a solid ground plane. Also, ensure that the input voltage (VIN) is within the recommended range of 2.7V to 5.5V.
  • The ADN4692EBRZ has a maximum current rating of 100mA per channel. However, it's recommended to derate the current to 50mA per channel for optimal performance and to prevent overheating.
  • To troubleshoot issues with the ADN4692EBRZ, start by checking the power supply voltage and ensuring it's within the recommended range. Then, verify that the input and output signals are within the recommended voltage ranges. If issues persist, check for PCB layout issues, such as signal integrity problems or noise coupling.
  • The ADN4692EBRZ is rated for operation from -40°C to 125°C. However, it's recommended to derate the device's performance at high temperatures (above 85°C) to prevent overheating and ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADN4692EBRZ Overview

Use the download button to access the ADN4692EBRZ schematic symbol, PCB footprint, and 3D model.
