ADN4695EBRZ - Analog Devices

Description: Analog Devices ADN4695EBRZ, LVDS Transceiver LVTTL/ MLVDS, 3 → 3.6 V, 14-Pin, SOIC

Download ADN4695EBRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

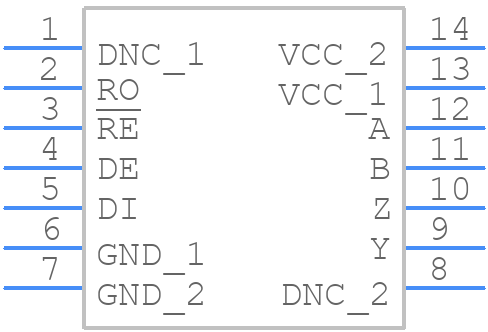

ADN4695EBRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADN4695EBRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 14-Lead Standard Small Outline Package
click to zoom
3D Models
ADN4695EBRZ - Analog Devices - 3D model - Small Outline Packages - 14-Lead Standard Small Outline Package
click to zoom

ADN4695EBRZ Details

  • Manufacturer Part Number:

    ADN4695EBRZ

  • Source Url Status Check Date:

    2013-05-01 14:56:44.309

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    14

  • Manufacturer Package Code:

    R-14

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.00001 A

  • Interface IC Type:

    LINE TRANSCEIVER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    0.48 V

  • Output Low Current-Max:

    0.008 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    24 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    DMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

ADN4695EBRZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADN4695EBRZ involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the load. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to decouple the VCC pin with a 0.1uF capacitor.
  • The ADN4695EBRZ requires a single 3.3V or 5V power supply. It's recommended to power the device with a clean, low-noise power supply, and to ensure that the power supply is stable before applying signals to the device. There are no specific power sequencing requirements, but it's recommended to power the device after the power supply has stabilized.
  • The ADN4695EBRZ is capable of data rates up to 3.2 Gbps, but the actual data rate achievable depends on the specific application, PCB layout, and signal quality. It's recommended to consult the datasheet and application notes for more information on achieving high-speed data transmission.
  • To troubleshoot issues with the ADN4695EBRZ, start by verifying the power supply and signal integrity. Check for signal reflections, crosstalk, and electromagnetic interference (EMI). Use oscilloscopes and signal analyzers to visualize the signals and identify any issues. Consult the datasheet and application notes for more information on troubleshooting and debugging techniques.
  • Yes, the ADN4695EBRZ has a maximum junction temperature of 150°C. It's recommended to ensure good airflow around the device, and to use thermal vias and heat sinks if necessary. Consult the datasheet and thermal management guidelines for more information on thermal design considerations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADN4695EBRZ Overview

Use the download button to access the ADN4695EBRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADN46, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
