The ADNS-9800 requires a 4-layer PCB with a solid ground plane and a thermal pad connected to a heat sink or a thermal via to ensure optimal thermal management. A well-designed PCB layout with minimal signal routing and a solid ground plane can help reduce noise and improve performance.
The ADNS-9800's sensitivity and accuracy can be optimized by adjusting the sensor's gain, offset, and threshold settings. Additionally, the sensor's performance can be improved by using a high-quality lens, optimizing the LED illumination, and using a suitable optical filter.
The recommended power-up sequence is to power up the VDDIO pin first, followed by the VDD pin. During power-down, the VDD pin should be powered down first, followed by the VDDIO pin. This sequence helps prevent damage to the device and ensures proper operation.
To minimize noise and interference, use a shielded cable for the sensor's output, keep the sensor away from high-frequency sources, and use a low-pass filter to remove high-frequency noise. Additionally, ensure proper grounding and decoupling of the power supply lines.
The ADNS-9800 requires a one-time calibration procedure to set the sensor's gain, offset, and threshold settings. The calibration procedure involves moving the sensor over a known distance and capturing the sensor's output data to determine the optimal settings.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADNS-9800 Overview

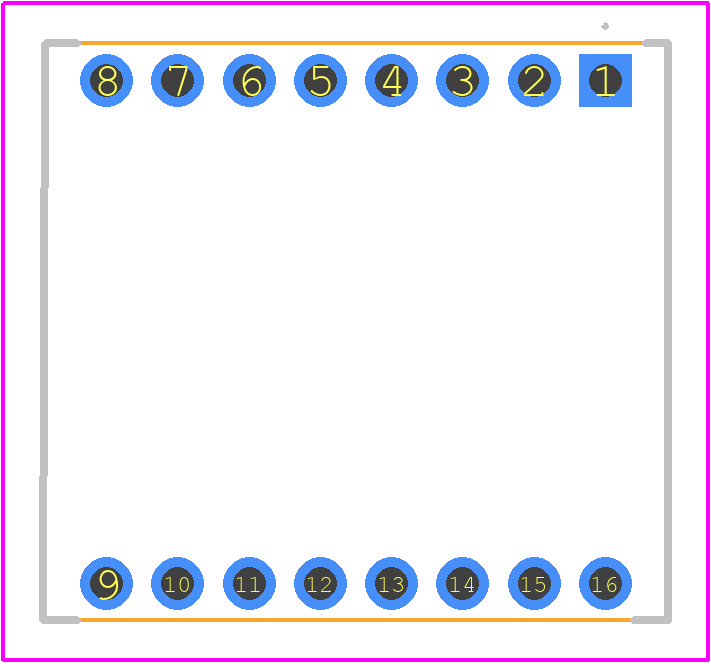

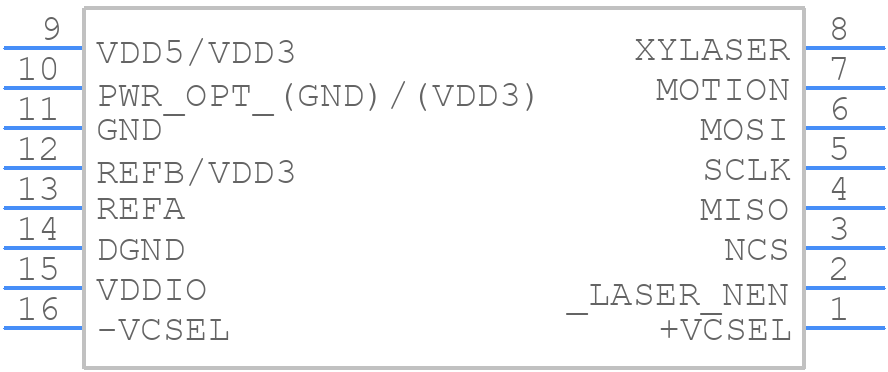

Use the download button to access the ADNS-9800 schematic symbol, PCB footprint, and 3D model.
