ADP1111ANZ-5 - Analog Devices

Description: Micropower, Step-Up/Step-Down SW Regulator; Adjustable and Fixed 3.3 V, 5 V, 12 V

Download ADP1111ANZ-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

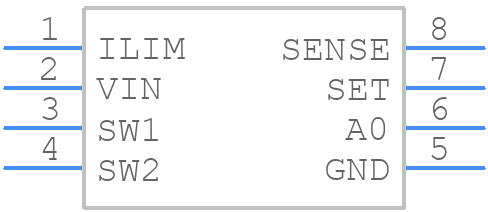

ADP1111ANZ-5 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP1111ANZ-5 - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8-Lead Plastic Dual In-Line Package [PDIP] (N-8)
click to zoom
3D Models
ADP1111ANZ-5 - Analog Devices - 3D model - Dual-In-Line Packages - 8-Lead Plastic Dual In-Line Package [PDIP] (N-8)
click to zoom

ADP1111ANZ-5 Details

  • Manufacturer Part Number:

    ADP1111ANZ-5

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    N-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE FREQUENCY MODULATION

  • Input Voltage-Max:

    30 V

  • Input Voltage-Min:

    2 V

  • Input Voltage-Nom:

    3 V

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.88 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    1.5 A

  • Output Voltage-Max:

    5.25 V

  • Output Voltage-Min:

    4.75 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max (Isup):

    0.4 mA

  • Surface Mount:

    NO

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    88 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

ADP1111ANZ-5 Frequently Asked Questions (FAQs)

  • The ADP1111ANZ-5 is a high-frequency device, and proper layout and placement are crucial. It is recommended to place the device close to the power source, use a solid ground plane, and keep the input and output traces short and separate to minimize noise and coupling.
  • The ADP1111ANZ-5 requires a proper bias voltage (VCC) to operate correctly. Improper biasing can lead to reduced performance, increased noise, and even device damage. Ensure the VCC pin is connected to a stable voltage source, and the voltage is within the recommended range (2.7V to 5.5V).
  • The ADP1111ANZ-5 can drive a maximum capacitive load of 100pF. Exceeding this limit can lead to reduced performance, increased ringing, and even oscillations. It is essential to consider the capacitive load when designing the circuit to ensure optimal performance.
  • The ADP1111ANZ-5 has built-in overvoltage protection (OVP) and undervoltage lockout (UVLO) features. If the input voltage exceeds the recommended range, the device will enter a high-impedance state to protect itself. However, repeated or prolonged exposure to overvoltage or undervoltage conditions can still cause damage or affect the device's reliability.
  • The ADP1111ANZ-5 has a maximum junction temperature (TJ) of 150°C. To ensure reliability, it is essential to implement a proper thermal management strategy, such as using a heat sink or thermal pad, to keep the device temperature below the maximum rating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADP1111ANZ-5 Overview

Use the download button to access the ADP1111ANZ-5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADP11, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
