ADP1111ARZ - Analog Devices

Description: ADP1111ARZ, Buck/Boost Converter, 0.4A, Adjustable, 88kHz, 8-Pin, SOIC

Download ADP1111ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

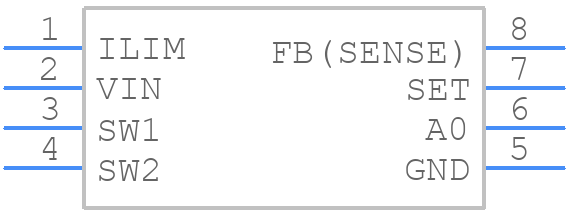

Symbol
ADP1111ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP1111ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - ADP1111ARZ
click to zoom
3D Models
ADP1111ARZ - Analog Devices - 3D model - Small Outline Packages - ADP1111ARZ
click to zoom

ADP1111ARZ Details

  • Manufacturer Part Number:

    ADP1111ARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE FREQUENCY MODULATION

  • Input Voltage-Max:

    30 V

  • Input Voltage-Min:

    2 V

  • Input Voltage-Nom:

    3 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    1.5 A

  • Output Voltage-Nom:

    1.25 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.4 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    88 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ADP1111ARZ Frequently Asked Questions (FAQs)

  • The ADP1111ARZ requires careful layout and placement to minimize noise and ensure proper operation. It is recommended to place the device close to the power source, use a solid ground plane, and keep the input and output traces separate to minimize noise coupling.
  • The output capacitor selection depends on the output voltage and current requirements. A general rule of thumb is to use a capacitor with a value between 10uF to 22uF, and a voltage rating of at least 2x the output voltage. The capacitor's ESR (Equivalent Series Resistance) should be as low as possible to minimize output ripple.
  • The ADP1111ARZ can handle input voltages up to 15V, but it is recommended to operate within the specified input voltage range of 4.5V to 14V for optimal performance and reliability.
  • The ADP1111ARZ operates within a temperature range of -40°C to 125°C. Ensure good thermal design and heat dissipation to prevent overheating, and avoid operating the device in high-temperature environments without proper cooling.
  • A simple RC filter with a 1uF capacitor and a 10Ω resistor is recommended to filter out high-frequency noise and ensure stable operation. The input filter should be placed close to the ADP1111ARZ to minimize noise coupling.
