ADP1650ACBZ-R7 - Analog Devices

Description: 1.5 A LED Flash Driver with I2C-Compatible Interface

Download ADP1650ACBZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

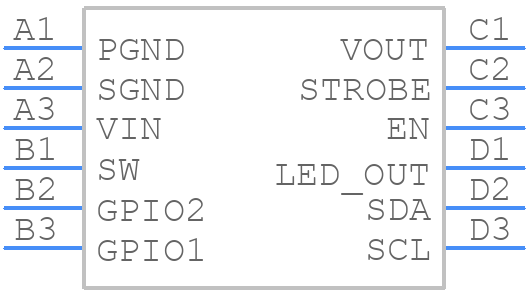

ADP1650ACBZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP1650ACBZ-R7 - Analog Devices PCB footprint - BGA - BGA - WLCSP
click to zoom
3D Models
ADP1650ACBZ-R7 - Analog Devices - 3D model - BGA - WLCSP
click to zoom

ADP1650ACBZ-R7 Details

  • Manufacturer Part Number:

    ADP1650ACBZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Package Description:

    2 X 1.50 MM, ROHS COMPLIANT, WLCSP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    CB-12-4

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Data Input Mode:

    SERIAL

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PBGA-B12

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA12,3X4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.66 mm

  • Supply Voltage-Max:

    5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    1.5 mm

  • fmax-Min:

    0.4 MHz

ADP1650ACBZ-R7 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ADP1650ACBZ-R7 can be found in the ADP1650 Evaluation Board documentation, which provides a detailed layout guide and Gerber files for reference.
  • To optimize the performance of the ADP1650ACBZ-R7, it is recommended to follow the application notes and design guidelines provided by Analog Devices Inc, and to consult with their technical support team for specific guidance tailored to your application.
  • The maximum operating temperature range for the ADP1650ACBZ-R7 is -40°C to +125°C, as specified in the datasheet. However, it is recommended to derate the device's performance at higher temperatures to ensure reliable operation.
  • Yes, the ADP1650ACBZ-R7 is qualified for use in high-reliability and automotive applications, and meets the relevant industry standards such as AEC-Q100. However, it is recommended to consult with Analog Devices Inc's technical support team to ensure that the device meets the specific requirements of your application.
  • To troubleshoot issues with the ADP1650ACBZ-R7, it is recommended to consult the datasheet and application notes, and to use debugging tools such as oscilloscopes and logic analyzers to identify the root cause of the issue. Additionally, Analog Devices Inc's technical support team can provide guidance and support to help resolve the issue.
