ADP1650ACPZ-R7 - Analog Devices

Description: LED Lighting Drivers 1.5A single LED Driver w/IZC Comp I/F

Download ADP1650ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

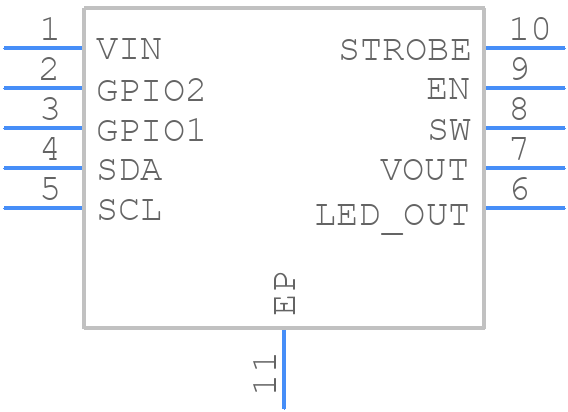

ADP1650ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP1650ACPZ-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - (CP-10-9)
click to zoom
3D Models
ADP1650ACPZ-R7 - Analog Devices - 3D model - Small Outline No-lead - (CP-10-9)
click to zoom

ADP1650ACPZ-R7 Details

  • Manufacturer Part Number:

    ADP1650ACPZ-R7

  • Source Url Status Check Date:

    2013-05-01 14:56:44.917

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    3 X 3 MM, 0.75 MM WIDTH, ROHS COMPLIANT, LFCSP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    CP-10-9

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Data Input Mode:

    SERIAL

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.6 V

  • Surface Mount:

    YES

  • Technology:

    DMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

  • fmax-Min:

    0.4 MHz

ADP1650ACPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP1650ACPZ-R7 involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the output capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitors are of high quality and have low ESR. Additionally, the input voltage should be well-regulated and free of noise.
  • The ADP1650ACPZ-R7 can handle input voltages up to 5.5V. However, it's recommended to operate the device within the specified input voltage range of 2.7V to 5.5V for optimal performance and reliability.
  • The ADP1650ACPZ-R7 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's performance and follow the recommended operating conditions for high-temperature applications.
  • To troubleshoot issues with the ADP1650ACPZ-R7, start by checking the input voltage, output voltage, and output current. Verify that the device is properly connected and that the PCB layout meets the recommended guidelines. Use an oscilloscope to check for noise, oscillations, or other anomalies on the input and output lines.
