ADP1761ACPZ-0.9-R7 - Analog Devices

Description: LDO Voltage Regulators 1ALowVin VeryLow DO low noise high PSSR

Download ADP1761ACPZ-0.9-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

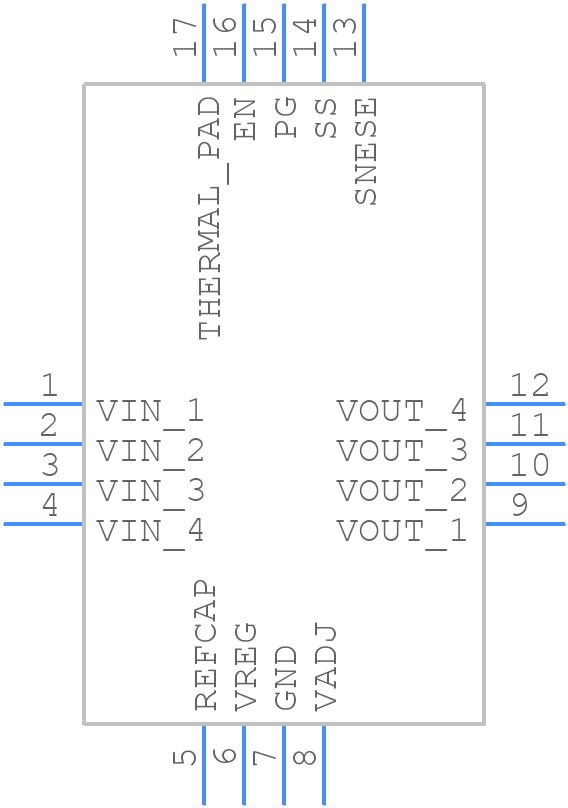

ADP1761ACPZ-0.9-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP1761ACPZ-0.9-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-22 [LFCSP_WQ]
click to zoom
3D Models
ADP1761ACPZ-0.9-R7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-22 [LFCSP_WQ]
click to zoom

ADP1761ACPZ-0.9-R7 Details

  • Manufacturer Part Number:

    ADP1761ACPZ-0.9-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-22

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.53 V

  • Dropout Voltage1-Nom:

    0.3 V

  • Input Voltage Absolute-Max:

    2.16 V

  • Input Voltage-Max:

    1.98 V

  • Input Voltage-Min:

    1.1 V

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max:

    0.00119%

  • Load Regulation-Max:

    0.00396%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1 A

  • Output Voltage1-Max:

    0.9135 V

  • Output Voltage1-Min:

    0.8865 V

  • Output Voltage1-Nom:

    0.9 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    1.5%

  • Width:

    3 mm

ADP1761ACPZ-0.9-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP1761 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability and prevent oscillations, it's essential to follow the recommended PCB layout, use the correct output capacitor value and type, and ensure that the input voltage is within the specified range. Additionally, adding a small ceramic capacitor (e.g., 10nF) between the VIN pin and GND can help to improve stability.
  • The ADP1761 can deliver up to 1.5A of output current, but this is dependent on the input voltage, output voltage, and ambient temperature. It's essential to check the device's thermal performance and power dissipation to ensure that it can deliver the required output current without overheating.
  • The ADP1761 is rated for operation up to 125°C, but its performance and reliability may be affected at high temperatures. It's essential to check the device's thermal performance and power dissipation to ensure that it can operate reliably in the target environment. Additional thermal management, such as heat sinks or thermal pads, may be required.
  • To troubleshoot issues with the ADP1761, start by checking the input voltage, output voltage, and output current. Verify that the device is properly configured and that the PCB layout is correct. Use an oscilloscope to check for oscillations or noise on the output voltage. Check the device's thermal performance and power dissipation to ensure that it is operating within its specified limits.
