ADP1763ACPZ-R7 - Analog Devices

Description: ANALOG DEVICES - ADP1763ACPZ-R7 - LDO, ADJ, 0.5V-1.5V, 3A, LFCSP-16

Download ADP1763ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

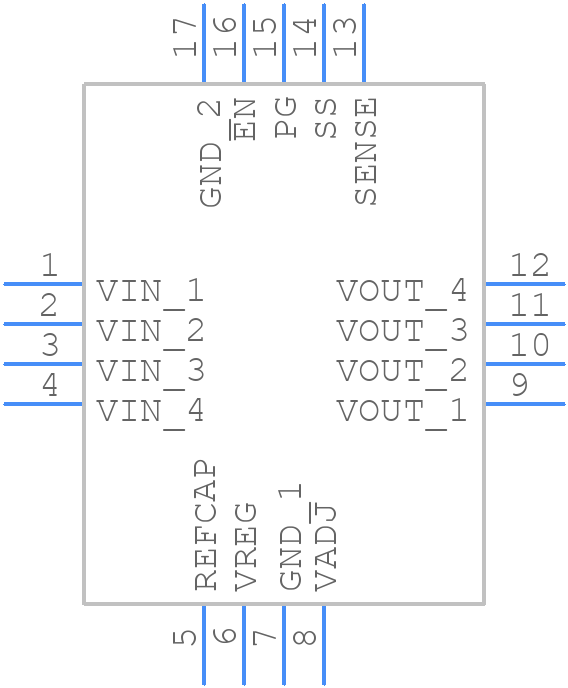

ADP1763ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP1763ACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - ADCLK925BCPZ-R21
click to zoom
3D Models
ADP1763ACPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - ADCLK925BCPZ-R21
click to zoom

ADP1763ACPZ-R7 Details

  • Manufacturer Part Number:

    ADP1763ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-22

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.145 V

  • Dropout Voltage1-Nom:

    0.095 V

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max (%/V):

    0.15

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    3 A

  • Output Voltage1-Max:

    1.5 V

  • Output Voltage1-Min:

    0.5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADP1763ACPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP1763ACPZ-R7 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog ground plane and to keep the power and ground traces separate.
  • To ensure stability, make sure to follow the recommended compensation network values and layout guidelines. Also, ensure that the output capacitor is properly sized and placed close to the device. Additionally, avoid using long output traces and minimize the inductance of the output capacitor.
  • The ADP1763ACPZ-R7 can handle input voltages up to 15V, but it's recommended to operate within the specified input voltage range of 2.7V to 5.5V for optimal performance and reliability.
  • The ADP1763ACPZ-R7 is rated for operation up to 125°C, but it's recommended to derate the output current and power dissipation at higher temperatures to ensure reliability and prevent thermal shutdown.
  • To troubleshoot issues with the ADP1763ACPZ-R7, start by checking the input voltage, output voltage, and output current. Verify that the compensation network is properly configured and that the PCB layout meets the recommended guidelines. Use an oscilloscope to check for oscillations or noise on the output voltage.
