ADP197ACBZ-R7 - Analog Devices

Description: Analog Devices ADP197ACBZ-R7, Power Distribution Switch, High Side, 17mΩ, 1.8 V min., 6-Pin WLCSP

Download ADP197ACBZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

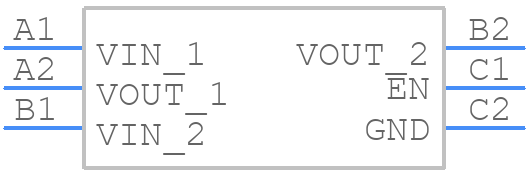

ADP197ACBZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP197ACBZ-R7 - Analog Devices PCB footprint - BGA - BGA - CB-6-2
click to zoom
3D Models
ADP197ACBZ-R7 - Analog Devices - 3D model - BGA - CB-6-2
click to zoom

ADP197ACBZ-R7 Details

  • Manufacturer Part Number:

    ADP197ACBZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Package Description:

    WLCSP-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    CB-6-2

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PBGA-B6

  • JESD-609 Code:

    e1

  • Length:

    1.45 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.675 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3.4 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    0.95 mm

ADP197ACBZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP197ACBZ-R7 involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor is properly sized and that the input voltage is within the recommended range. Additionally, adding a small resistor (e.g., 10 ohms) in series with the output capacitor can help prevent oscillation.
  • The ADP197ACBZ-R7 is rated for operation from -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, and the output voltage may drop. It's recommended to derate the output current and voltage at high temperatures.
  • While the ADP197ACBZ-R7 is a high-quality device, it's not specifically designed for high-reliability or aerospace applications. For such applications, it's recommended to use devices that are specifically qualified for those markets, such as the ADP197ACBZ-R7's radiation-hardened or high-reliability variants.
  • To troubleshoot issues with the ADP197ACBZ-R7, start by checking the input voltage, output current, and PCB layout. Verify that the component values and PCB layout match the recommended design. Use an oscilloscope to check for oscillations or noise on the output. If the issue persists, consult the datasheet and application notes, or contact Analog Devices' technical support.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADP197ACBZ-R7 Overview

Use the download button to access the ADP197ACBZ-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADP19, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
