ADP198ACPZ-R7 - Analog Devices

Description: Analog Devices ADP198ACPZ-R7, 1 Power Switch IC, High Side Switch 8-Pin, LFCSP

Download ADP198ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

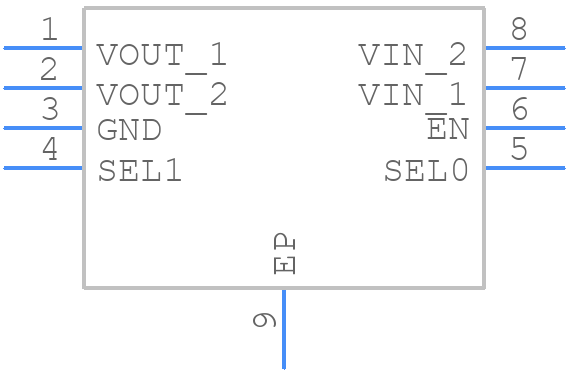

ADP198ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP198ACPZ-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - [LFCSP_UD]
click to zoom
3D Models
ADP198ACPZ-R7 - Analog Devices - 3D model - Small Outline No-lead - [LFCSP_UD]
click to zoom

ADP198ACPZ-R7 Details

  • Manufacturer Part Number:

    ADP198ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    Load switch

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.65 mm

  • Supply Voltage-Max (Vsup):

    6.5 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    2.8 V

  • Surface Mount:

    YES

  • Technology:

    PMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

ADP198ACPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP198ACPZ-R7 involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor is properly sized and that the input voltage is within the recommended range. Additionally, adding a small capacitor (e.g. 10nF) between the VIN and GND pins can help improve stability.
  • The ADP198ACPZ-R7 can handle input voltages up to 15V, but it's recommended to operate within the recommended input voltage range of 4.5V to 12V for optimal performance and reliability.
  • The ADP198ACPZ-R7 is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at higher temperatures to ensure reliability. Consult the datasheet for specific derating guidelines.
  • To troubleshoot issues, start by checking the input voltage, output voltage, and output current. Verify that the input voltage is within the recommended range and that the output voltage is within the expected range. Check for any signs of overheating, and ensure that the PCB layout is correct. If issues persist, consult the datasheet and application notes for further guidance.
