ADP3631ARMZ-R7 - Analog Devices

Description: High Speed, Dual, 2 A MOSFET Driver

Download ADP3631ARMZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

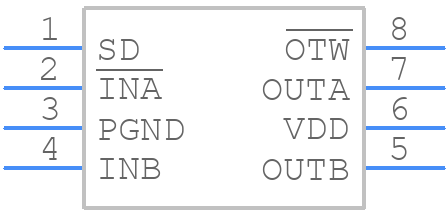

ADP3631ARMZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP3631ARMZ-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - .8-Lead Mini Small Outline Package [MSOP] (RM-8)_2025
click to zoom
3D Models
ADP3631ARMZ-R7 - Analog Devices - 3D model - Small Outline Packages - .8-Lead Mini Small Outline Package [MSOP] (RM-8)_2025
click to zoom

ADP3631ARMZ-R7 Details

  • Manufacturer Part Number:

    ADP3631ARMZ-R7

  • Source Url Status Check Date:

    2013-05-01 14:56:46.866

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-187-AA, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • High Side Driver:

    YES

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Peak Current Limit-Nom:

    2 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    9.5 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    18 V

  • Supply Voltage1-Min:

    9.5 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    35 µs

  • Turn-on Time:

    30 µs

  • Width:

    3 mm

ADP3631ARMZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP3631ARMZ-R7 involves keeping the input and output traces separate, using a solid ground plane, and placing the input capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and ensure optimal performance.
  • The selection of input and output capacitors for the ADP3631ARMZ-R7 depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended for the input capacitors, while 10uF to 22uF ceramic or tantalum capacitors are suitable for the output capacitors. It's also important to consider the ESR and ESL of the capacitors to ensure they meet the device's requirements.
  • The ADP3631ARMZ-R7 can operate in ambient temperatures ranging from -40°C to +125°C. However, the device's performance and reliability may be affected at temperatures above 85°C, and it's recommended to derate the device's output current and voltage accordingly.
  • To ensure the ADP3631ARMZ-R7 is stable and doesn't oscillate, it's recommended to follow the device's layout and component selection guidelines, use a sufficient output capacitor, and ensure the input voltage is within the recommended range. Additionally, it's recommended to add a small resistor (e.g. 10Ω) in series with the output capacitor to dampen any oscillations.
  • The typical startup time for the ADP3631ARMZ-R7 is around 1ms to 2ms, depending on the input voltage and output capacitor values. However, this time can be affected by the device's input voltage, output capacitor value, and other external factors.
