ADP5034ACPZ-R2 - Analog Devices

Description: Switching Voltage PMIC - Voltage Regulators - Linear Switching 4 Output Step-Down (Buck) Synchronous (2), Linear (LDO) (2) 3MHz 24-LFCSP-WQ (4x4)Adjustable Voltage part

Download ADP5034ACPZ-R2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

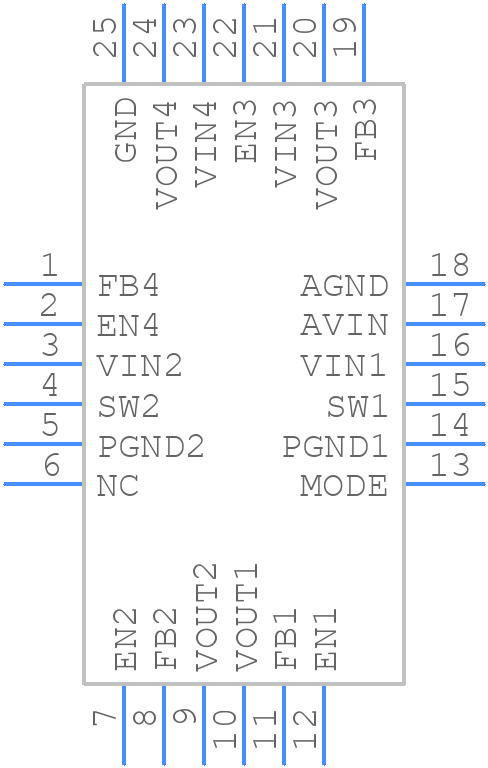

ADP5034ACPZ-R2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP5034ACPZ-R2 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-Lead Lead Frame Chip Scale Package [LFCSP_WQ] 4 mm × 4 mm Body, Very Very Thin Quad (CP-24-10)
click to zoom
3D Models
ADP5034ACPZ-R2 - Analog Devices - 3D model - Quad Flat No-Lead - 24-Lead Lead Frame Chip Scale Package [LFCSP_WQ] 4 mm × 4 mm Body, Very Very Thin Quad (CP-24-10)
click to zoom

ADP5034ACPZ-R2 Details

  • Manufacturer Part Number:

    ADP5034ACPZ-R2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-30 Code:

    S-PQCC-N24

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    24

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Technology:

    DMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

ADP5034ACPZ-R2 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the device, and use short, wide traces for the power lines. Avoid routing digital signals near the analog inputs.
  • Use a power-on reset (POR) circuit to ensure the device is properly powered up. Configure the device using the I2C interface, and use the EN pin to enable or disable the device. Follow the recommended power-up sequence in the datasheet.
  • The maximum output current is 1.5A per channel. To prevent overheating, ensure good thermal conductivity between the device and the PCB, and use a heat sink if necessary. Monitor the device temperature using the THERM pin, and implement thermal shutdown protection if needed.
  • Use a low-ESR input capacitor, and place it close to the device. Choose a high-quality output capacitor with low equivalent series resistance (ESR). Use a quiet power supply, and consider adding a filter capacitor to reduce noise. Optimize the PCB layout to minimize noise coupling.
  • The recommended input voltage range is 2.7V to 5.5V. Use a voltage regulator or a transient voltage suppressor (TVS) to handle input voltage transients. Ensure the input capacitor is rated for the maximum input voltage, and consider adding a voltage clamp to protect the device.
