ADP5034AREZ - Analog Devices

Description: Analog Devices, ADP5034AREZ Switching Regulator Triple 1200mA Adjustable, 0.8 → 3.8 V, 28-Pin TSSOP

Download ADP5034AREZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

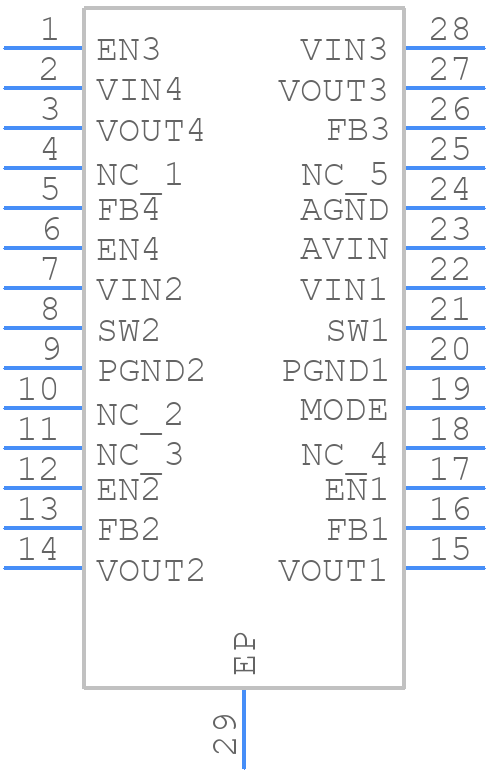

ADP5034AREZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP5034AREZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RE-28-1)
click to zoom
3D Models
ADP5034AREZ - Analog Devices - 3D model - Small Outline Packages - (RE-28-1)
click to zoom

ADP5034AREZ Details

  • Manufacturer Part Number:

    ADP5034AREZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    9.70 X 6.40 MM, ROHS COMPLIANT, MO-153AET, TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RE-28-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES AS LDO REGULATOR; OPERATES IN ADJUSTABLE MODE FROM 0.8 TO 5.2V

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Technology:

    DMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADP5034AREZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP5034AREZ involves separating the analog and digital grounds, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and EMI.
  • To ensure stability, it's essential to follow the recommended compensation network and component values provided in the datasheet. Additionally, the output capacitors should be selected based on the output voltage and current requirements, and the input capacitors should be chosen to filter out high-frequency noise.
  • The maximum input voltage that can be applied to the ADP5034AREZ is 6V, which is the absolute maximum rating. However, it's recommended to operate the device within the recommended input voltage range of 2.7V to 5.5V to ensure optimal performance and reliability.
  • The ADP5034AREZ is rated for operation up to 125°C, but it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. The device's junction temperature should be kept below 150°C to ensure reliability and prevent thermal shutdown.
  • To troubleshoot issues with the ADP5034AREZ, start by verifying the input voltage, output voltage, and output current. Check the PCB layout and component values to ensure they match the recommended values in the datasheet. Use an oscilloscope to measure the output voltage and current waveforms, and check for signs of oscillation or noise. If the issue persists, consult the datasheet and application notes for guidance or contact Analog Devices' technical support.
