ADP5061ACBZ-5-R7 - Analog Devices

Description: ANALOG DEVICES - ADP5061ACBZ-5-R7 - Battery Charger for 1 Cell of Li-Ion, Li-Pol battery, 6.7V input, 1.3A charge, WLCSP-20

Download ADP5061ACBZ-5-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

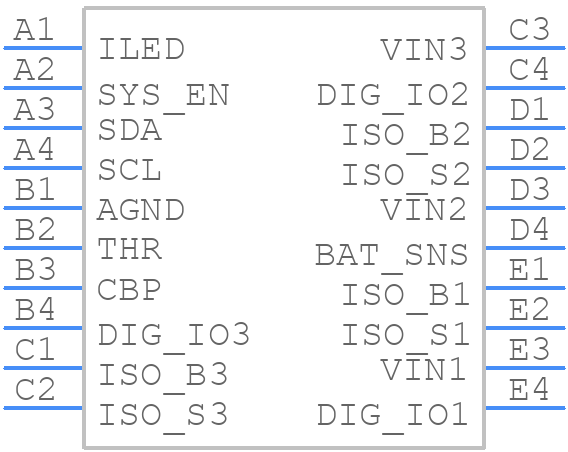

ADP5061ACBZ-5-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP5061ACBZ-5-R7 - Analog Devices PCB footprint - BGA - BGA - WLCSP20
click to zoom
3D Models
ADP5061ACBZ-5-R7 - Analog Devices - 3D model - BGA - WLCSP20
click to zoom

ADP5061ACBZ-5-R7 Details

  • Manufacturer Part Number:

    ADP5061ACBZ-5-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CB-20-9

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    R-PBGA-B20

  • JESD-609 Code:

    e1

  • Length:

    2.595 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA20,4X5,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.66 mm

  • Supply Current-Max (Isup):

    1500 mA

  • Supply Voltage-Max (Vsup):

    6.7 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    DMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    1.995 mm

ADP5061ACBZ-5-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP5061ACBZ-5-R7 involves separating the analog and digital grounds, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper power-up and configuration, it's recommended to follow a specific power-up sequence, which includes applying the input voltage, waiting for the internal voltage regulator to stabilize, and then applying the enable signal. Additionally, the device should be configured through the I2C interface after power-up.
  • The ADP5061ACBZ-5-R7 has a maximum junction temperature of 125°C. To ensure safe operation, it's recommended to provide adequate heat sinking, use a thermal interface material, and keep the device away from heat sources. Additionally, the device should be operated within the recommended ambient temperature range of -40°C to 85°C.
  • To troubleshoot issues with the ADP5061ACBZ-5-R7, it's recommended to follow a systematic approach, which includes checking the input voltage, output voltage, and enable signal. Additionally, use an oscilloscope to monitor the device's behavior, and consult the datasheet and application notes for guidance on troubleshooting common issues.
  • The ADP5061ACBZ-5-R7 is a high-reliability device, but it's essential to consult the datasheet and relevant application notes to ensure it meets the specific requirements of the application. Additionally, Analog Devices provides relevant certifications and compliance information, such as AEC-Q100 and IEC 60601, which can be found on their website.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADP5061ACBZ-5-R7 Overview

Use the download button to access the ADP5061ACBZ-5-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADP50, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
