ADP5063ACPZ-1-R7 - Analog Devices

Description: Battery Management LiFePO4 Linear USB Charger in LFCSP Pkg

Download ADP5063ACPZ-1-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

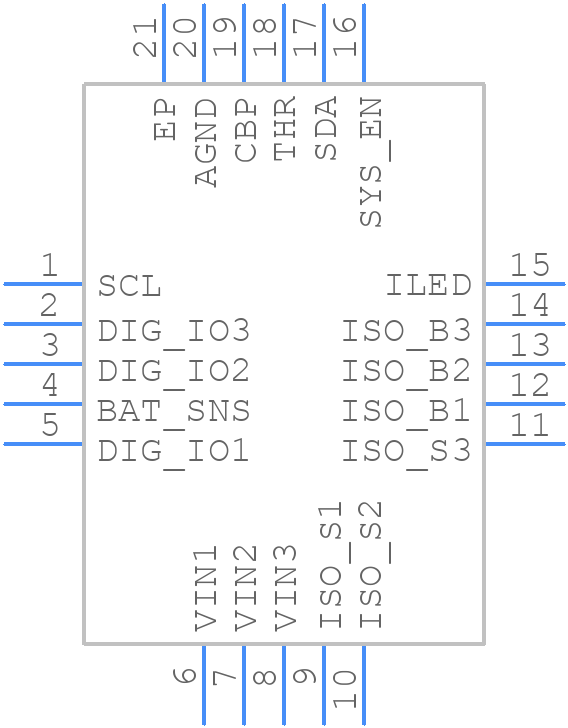

ADP5063ACPZ-1-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP5063ACPZ-1-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-20-8)
click to zoom
3D Models
ADP5063ACPZ-1-R7 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-20-8)
click to zoom

ADP5063ACPZ-1-R7 Details

  • Manufacturer Part Number:

    ADP5063ACPZ-1-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-8

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    BATTERY THRESHOLD VOLTAGE ARE 1.9 AND 3.4V

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    1500 mA

  • Supply Voltage-Max (Vsup):

    6.7 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +1.9,3.4V

  • Width:

    4 mm

ADP5063ACPZ-1-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP5063ACPZ-1-R7 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces connecting the device to the capacitors and resistors.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines, and avoid using capacitors with high ESR values. Also, ensure that the input voltage is within the recommended range and the output is properly decoupled.
  • The ADP5063ACPZ-1-R7 is rated for operation from -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. Consult the datasheet and thermal management guidelines for more information.
  • Yes, the ADP5063ACPZ-1-R7 is suitable for high-reliability and automotive applications, but additional testing and qualification may be required. Consult the datasheet and Analog Devices' reliability reports for more information.
  • To troubleshoot issues, start by verifying the input voltage, output voltage, and current consumption. Check for proper PCB layout, component values, and soldering quality. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADP5063ACPZ-1-R7 Overview

Use the download button to access the ADP5063ACPZ-1-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADP50, or try a keyword search, such as Power Management Circuits
