ADP5065ACBZ-1-R7 - Analog Devices

Description: Charger IC Lithium Ion 20-WLCSP (2.04x2.71)

Download ADP5065ACBZ-1-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

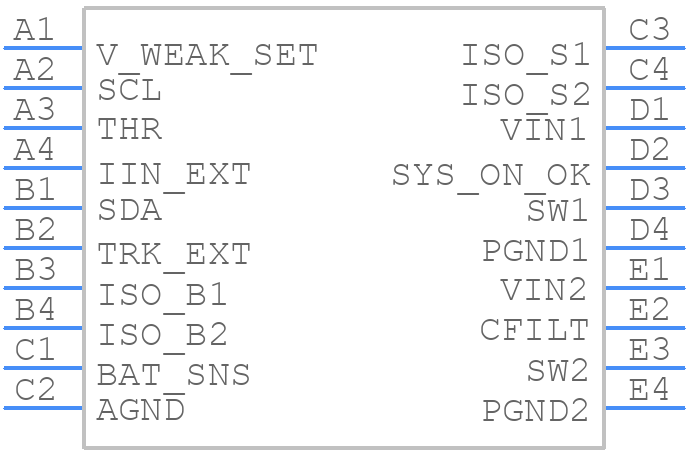

ADP5065ACBZ-1-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP5065ACBZ-1-R7 - Analog Devices PCB footprint - BGA - BGA - CB-20-8
click to zoom
3D Models
ADP5065ACBZ-1-R7 - Analog Devices - 3D model - BGA - CB-20-8
click to zoom

ADP5065ACBZ-1-R7 Details

  • Manufacturer Part Number:

    ADP5065ACBZ-1-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Package Description:

    2.75 X 2.08 MM, 0.50 MM PITCH, WLCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CB-20-8

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    Cascade Function:N;CTL:Y;Integrated MOSFET:Y;PS:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY MONITOR

  • JESD-30 Code:

    R-PBGA-B20

  • JESD-609 Code:

    e1

  • Length:

    2.76 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA20,4X5,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.66 mm

  • Supply Current-Max (Isup):

    1500 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.12 mm

ADP5065ACBZ-1-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP5065ACBZ-1-R7 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated power plane is recommended. Refer to the ADP5065 evaluation board layout for a reference design.
  • To optimize the performance of the ADP5065ACBZ-1-R7 in a high-temperature environment, ensure good thermal management by providing adequate heat sinking and airflow. Reduce the input voltage and output current to minimize power dissipation. Also, consider using a thermally enhanced package or a heat sink to reduce the junction temperature.
  • A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for the input capacitor. X5R or X7R dielectric capacitors are suitable for most applications. The input capacitor should be placed as close as possible to the VIN pin to minimize the inductance of the connection.
  • To troubleshoot issues with the ADP5065ACBZ-1-R7, start by verifying the input voltage, output voltage, and output current. Check the PCB layout and ensure that the input and output capacitors are properly placed and connected. Use an oscilloscope to check for oscillations or ringing on the output voltage. Also, verify that the device is properly configured and that the EN pin is properly biased.
  • Yes, the ADP5065ACBZ-1-R7 can be used in a battery-powered application. However, ensure that the input voltage is within the recommended range and that the device is properly configured to minimize power consumption. Consider using a low-power mode or shutdown feature to reduce power consumption when the device is not in use.
