Part Image

ADP5090ACPZ-1-R7 - Analog Devices

Description: Battery Management Ultralow Power Boost Regulator with MPPT and Charge Management

Download ADP5090ACPZ-1-R7 Model

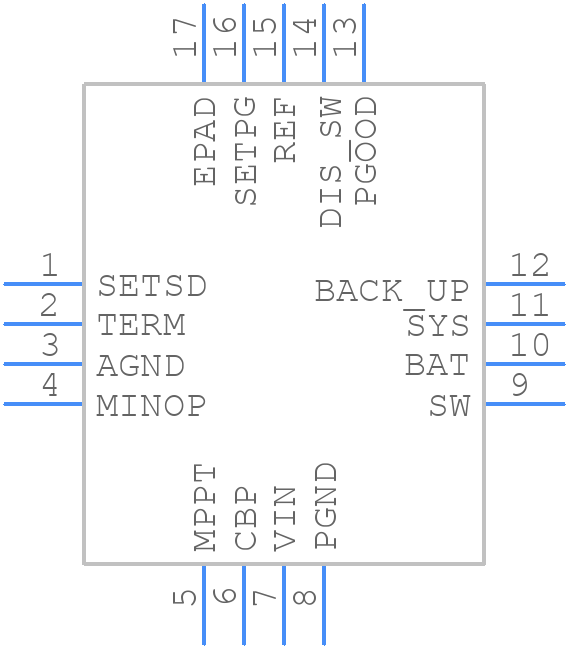

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADP5090ACPZ-1-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - ADP5090
click to zoom
3D Models
ADP5090ACPZ-1-R7 - Analog Devices  - 3D model - Quad Flat No-Lead - ADP5090
click to zoom

ADP5090ACPZ-1-R7 Details

  • Manufacturer Part Number:

    ADP5090ACPZ-1-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-33

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    BATTERY MONITOR

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADP5090ACPZ-1-R7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the device and use short, wide traces for the power paths.
  • Use a thermal pad on the bottom of the package, and connect it to a solid ground plane on the PCB. Ensure good airflow around the device and avoid blocking the airflow with nearby components.
  • A 10uF to 22uF X5R or X7R ceramic capacitor is recommended, placed as close to the VIN pin as possible. The capacitor should be rated for the input voltage and have a low ESR.
  • Use a high-precision resistor divider network for the feedback resistors, and ensure the resistors have a low temperature coefficient. Also, use a low-ESR output capacitor to minimize output voltage ripple.
  • The maximum ambient temperature for the ADP5090 is 85°C, but it can be derated for higher temperatures. Consult the datasheet for thermal derating information.
