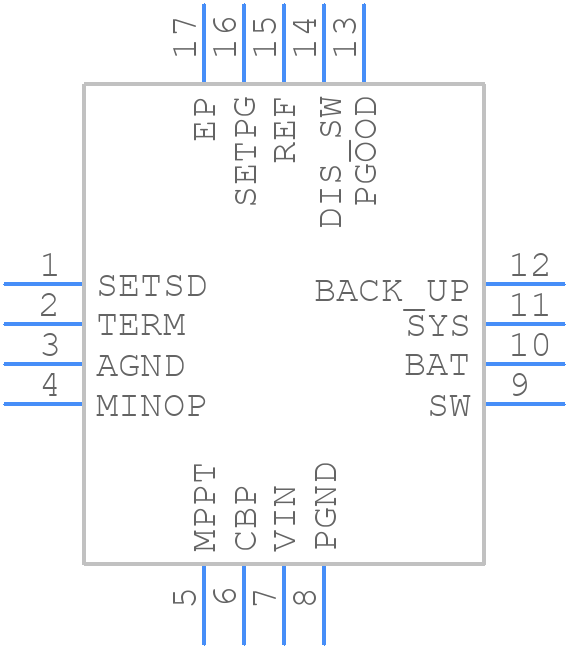

ADP5090ACPZ-2-R7 - Analog Devices

ADP5090ACPZ-2-R7 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance?
  A good PCB layout is crucial for the ADP5090's performance. Ensure a solid ground plane, keep the input and output capacitors close to the device, and use short, wide traces for the power paths. Avoid routing sensitive analog signals near the switching node.
• How do I select the right input and output capacitors?
  Choose input capacitors with low ESR (Equivalent Series Resistance) and high ripple current rating. For output capacitors, select ones with low ESR, high capacitance, and a voltage rating that meets or exceeds the output voltage. X5R or X7R ceramic capacitors are good options.
• What is the maximum ambient temperature for reliable operation?
  The ADP5090ACPZ-2-R7 is rated for operation up to 125°C ambient temperature. However, for reliable long-term operation, it's recommended to keep the ambient temperature below 100°C to minimize thermal stress and ensure optimal performance.
• How do I ensure the device is properly powered up and down?
  Follow the recommended power-up and power-down sequences in the datasheet. Ensure the input voltage is stable and within the specified range before enabling the device. During power-down, ensure the input voltage is removed before the enable pin is driven low.
• What are the key considerations for thermal management?
  The ADP5090ACPZ-2-R7 has a high power density, so thermal management is crucial. Ensure good airflow, use a heat sink if necessary, and keep the device away from other heat sources. Monitor the junction temperature and adjust the design accordingly to prevent overheating.
