ADP51B61 - Panasonic

Description: Pressure Sensor,DIP terminal 6kPa

Download ADP51B61 Model
Schematic

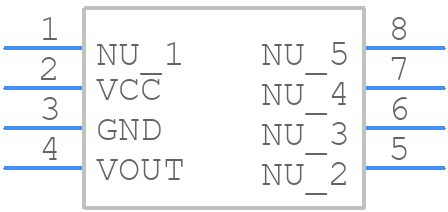

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

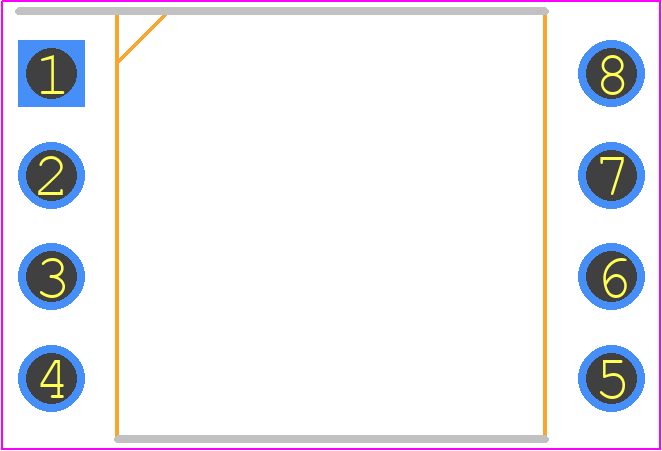

ADP51B61 - Panasonic PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - ADP51B61
click to zoom
3D Models
ADP51B61 - Panasonic  - 3D model - Dual-In-Line Packages - ADP51B61
click to zoom

ADP51B61 Details

  • Manufacturer Part Number:

    ADP51B61

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Japan

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    0

  • Accuracy-Max (%):

    2.5%

  • Additional Feature:

    TEMPERATURE COMPENSATED

  • Body Breadth:

    10.4 mm

  • Body Height:

    5.7 mm

  • Body Length or Diameter:

    10.4 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Offset-Nom:

    0.5V

  • Operating Current-Max:

    10 mA

  • Operating Temperature-Max:

    70 °C

  • Output Range:

    0.5-4.5V

  • Output Type:

    ANALOG VOLTAGE

  • Package Shape/Style:

    SQUARE

  • Port Type:

    STRAIGHT

  • Pressure Range-Max:

    0.87 Psi

  • Pressure Sensing Mode:

    GAGE

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER
