ADP5300ACPZ-2-R7 - Analog Devices

Description: Switching Voltage Regulators 50mA/500mA ULP Buck w/o OD ST

Download ADP5300ACPZ-2-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

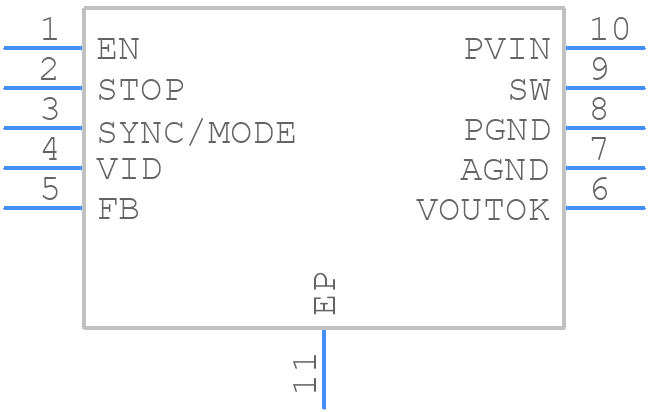

ADP5300ACPZ-2-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP5300ACPZ-2-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - (CP-10-9)
click to zoom
3D Models
ADP5300ACPZ-2-R7 - Analog Devices - 3D model - Small Outline No-lead - (CP-10-9)
click to zoom

ADP5300ACPZ-2-R7 Details

  • Manufacturer Part Number:

    ADP5300ACPZ-2-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    CP-10-9

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    6.5 V

  • Input Voltage-Min:

    2.15 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.2 A

  • Output Voltage-Max:

    5 V

  • Output Voltage-Min:

    0.8 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2300 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADP5300ACPZ-2-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP5300ACPZ-2-R7 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the device should be operated within its recommended operating conditions, and the input voltage should be well-regulated.
  • The ADP5300ACPZ-2-R7 is rated for operation from -40°C to +125°C. However, the device's performance may degrade at higher temperatures, and the maximum junction temperature should not exceed 150°C.
  • Yes, the ADP5300ACPZ-2-R7 is suitable for high-reliability and automotive applications. It is AEC-Q100 qualified and meets the requirements for automotive applications. However, additional testing and validation may be required for specific applications.
  • To troubleshoot issues with the ADP5300ACPZ-2-R7, start by verifying the input voltage and current, and checking for any signs of overheating. Use an oscilloscope to check the output voltage and current waveforms. Also, ensure that the device is properly soldered and that there are no soldering defects.
