ADP5302ACPZ-2-R7 - Analog Devices

Description: Switching Voltage Regulators 50mA/500mA ULP Buck VINOK w/o OD ST

Download ADP5302ACPZ-2-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

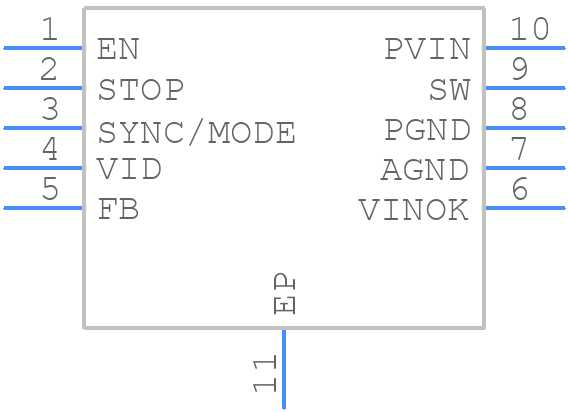

ADP5302ACPZ-2-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP5302ACPZ-2-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 10-Lead Lead Frame Chip Scale Package [LFCSP] 3 mm × 3 mm Body and 0.75 mm Package Height (CP-10-9)
click to zoom
3D Models
ADP5302ACPZ-2-R7 - Analog Devices - 3D model - Small Outline No-lead - 10-Lead Lead Frame Chip Scale Package [LFCSP] 3 mm × 3 mm Body and 0.75 mm Package Height (CP-10-9)
click to zoom

ADP5302ACPZ-2-R7 Details

  • Manufacturer Part Number:

    ADP5302ACPZ-2-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    CP-10-9

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    6.5 V

  • Input Voltage-Min:

    2.15 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.2 A

  • Output Voltage-Nom:

    1.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2300 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

ADP5302ACPZ-2-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the ADP5302ACPZ-2-R7. Ensure a solid ground plane, keep the input and output traces short and separate, and use a low-ESR capacitor for the input decoupling. Refer to the ADP5302 evaluation board layout as a reference.
  • Choose input capacitors with low ESR (Equivalent Series Resistance) and high ripple current rating. For output capacitors, select ones with low ESR and high capacitance. The datasheet recommends 10uF for the input capacitor and 22uF for the output capacitor.
  • The maximum input voltage rating is 5.5V. Exceeding this voltage may damage the device. Ensure the input voltage is within the recommended range of 2.7V to 5.5V for optimal performance.
  • The ADP5302ACPZ-2-R7 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. Ensure proper thermal management and consider derating the output current at high temperatures.
  • To ensure stability, follow the datasheet's guidelines for input and output capacitor selection, and keep the input and output traces short and separate. Additionally, ensure the output capacitor has a low ESR and the input voltage is within the recommended range.
