ADP5350ACBZ-1-R7 - Analog Devices

Description: Battery Management PMU:BATCharger&Gauge Boost/LED, 3xLDO

Download ADP5350ACBZ-1-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

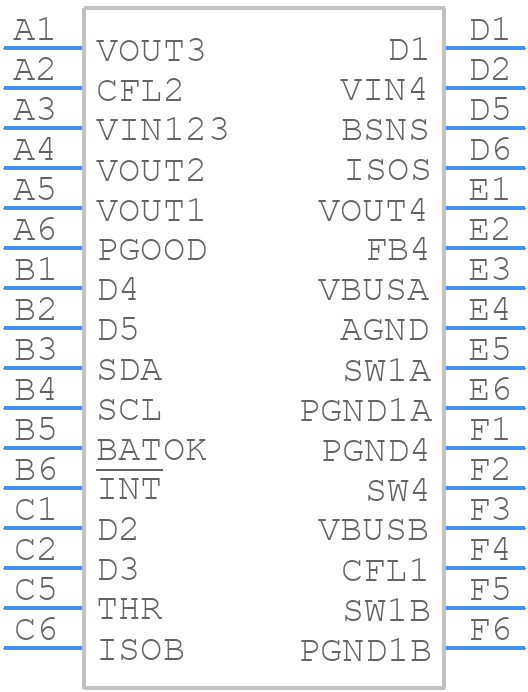

ADP5350ACBZ-1-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP5350ACBZ-1-R7 - Analog Devices PCB footprint - BGA - BGA - (CB-32-1)*-*-
click to zoom
3D Models
ADP5350ACBZ-1-R7 - Analog Devices - 3D model - BGA - (CB-32-1)*-*-
click to zoom

ADP5350ACBZ-1-R7 Details

  • Manufacturer Part Number:

    ADP5350ACBZ-1-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CB-32-1

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2017-11-09

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-30 Code:

    R-PBGA-B32

  • Length:

    3.36 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    6

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA32,6X6,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.66 mm

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.31 mm

ADP5350ACBZ-1-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP5350 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance.
  • To ensure stability, make sure to follow the recommended component values and PCB layout, and add a small capacitor (e.g., 10nF) between the VOUT and VIN pins to improve phase margin.
  • The ADP5350 can handle input voltages up to 15V, but it's recommended to keep the input voltage below 12V for optimal performance and reliability.
  • The ADP5350 is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to derate the output current and voltage at high temperatures to ensure reliability.
  • The output voltage of the ADP5350 can be calculated using the formula: VOUT = (R1/R2) * (VIN - VREF), where R1 and R2 are the resistors in the feedback network, VIN is the input voltage, and VREF is the internal reference voltage (1.25V).
