ADP5360ACBZ-2-R7 - Analog Devices

Description: Battery Management IC, ULP PMU CHG FG BP Buck BB WLCSP

Download ADP5360ACBZ-2-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

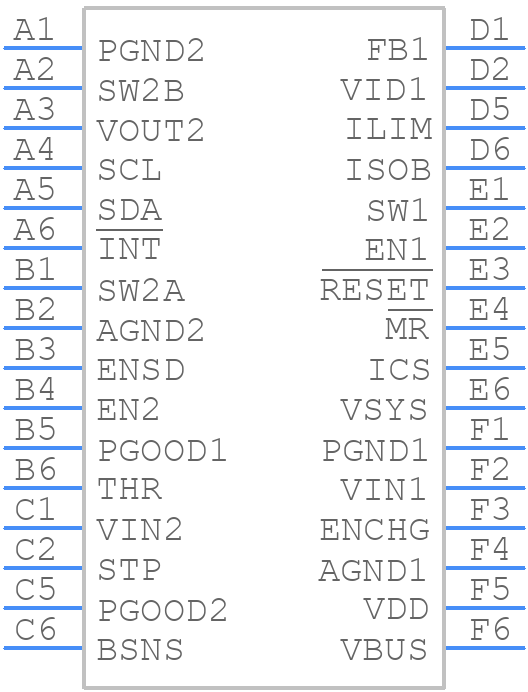

Symbol
ADP5360ACBZ-2-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP5360ACBZ-2-R7 - Analog Devices PCB footprint - Other - Other - 32-Ball Wafer Level Chip Scale Package [WLCSP] (CB-32-2)
click to zoom
3D Models
ADP5360ACBZ-2-R7 - Analog Devices - 3D model - Other - 32-Ball Wafer Level Chip Scale Package [WLCSP] (CB-32-2)
click to zoom

ADP5360ACBZ-2-R7 Details

  • Manufacturer Part Number:

    ADP5360ACBZ-2-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CB-32-2

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-11-20

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-30 Code:

    S-PBGA-B32

  • Length:

    2.56 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA32,6X6,16

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    0.56 mm

  • Supply Current-Max (Isup):

    2 mA

  • Supply Voltage-Max (Vsup):

    6.8 V

  • Supply Voltage-Min (Vsup):

    4.1 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    2.56 mm

ADP5360ACBZ-2-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP5360 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance.
  • To ensure stability, make sure to follow the recommended component values and PCB layout, and add a small capacitor (e.g., 10nF) between the VOUT and VIN pins to improve phase margin. Also, avoid using long, thin traces for the output voltage.
  • The ADP5360 can handle input voltages up to 5.5V, but it's recommended to keep the input voltage below 5V to ensure reliable operation and minimize power dissipation.
  • The ADP5360 is rated for operation up to 125°C, but its performance may degrade at high temperatures. Ensure proper thermal management and consider using a heat sink if operating in high-temperature environments.
  • The output voltage of the ADP5360 can be calculated using the formula: VOUT = (R1/R2) * (VIN - VREF), where R1 and R2 are the resistors in the feedback network, VIN is the input voltage, and VREF is the internal reference voltage (1.2V).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADP5360ACBZ-2-R7 Overview

Use the download button to access the ADP5360ACBZ-2-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADP53, or try a keyword search, such as Power Management Circuits
