ADP5600ACPZ-R7 - Analog Devices

Description: Switching Voltage Regulators Inverting Charge Pump & Low Noise negLDO

Download ADP5600ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

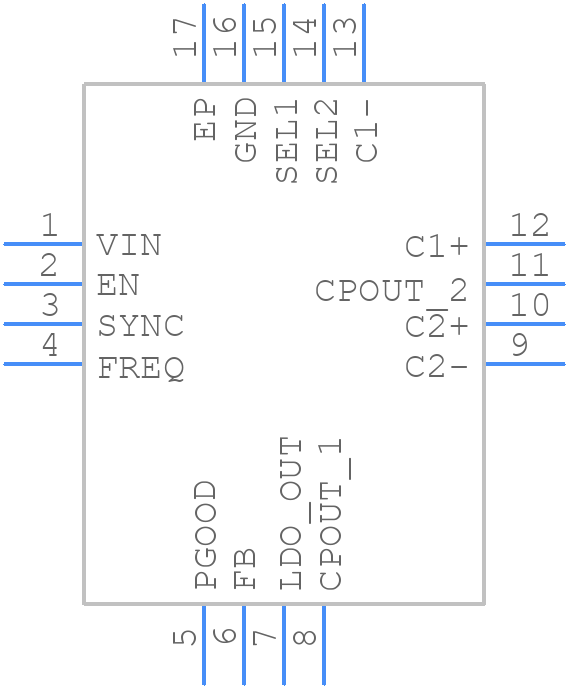

ADP5600ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP5600ACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-17 (LFCSP)
click to zoom
3D Models
ADP5600ACPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-17 (LFCSP)
click to zoom

ADP5600ACPZ-R7 Details

  • Manufacturer Part Number:

    ADP5600ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-17

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-07-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHED CAPACITOR REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    16 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.33 A

  • Output Voltage-Max:

    -15.5 V

  • Output Voltage-Min:

    -0.505 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    8.5 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    INVERTER

  • Switching Frequency-Max:

    1100 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADP5600ACPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP5600ACPZ-R7 involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure proper powering and decoupling of the ADP5600ACPZ-R7, use a high-quality power supply with low ripple and noise, and add decoupling capacitors (e.g., 10uF and 100nF) close to the device. Also, ensure that the power supply voltage is within the recommended range of 2.7V to 5.5V.
  • The ADP5600ACPZ-R7 can sink or source up to 20mA of current per output pin, but it's recommended to limit the current to 10mA or less to ensure reliable operation and minimize power consumption.
  • The ADP5600ACPZ-R7's internal registers can be programmed using a serial interface (SPI or I2C) and a microcontroller or a dedicated programming device. The programming sequence and register maps are described in the datasheet and application notes.
  • The ADP5600ACPZ-R7 has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer. Ensure good airflow and avoid blocking the airflow around the device.
