ADP7102ACPZ-2.5-R7 - Analog Devices

Description: 20 V, 300 mA, Low Noise, CMOS LDO

Download ADP7102ACPZ-2.5-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

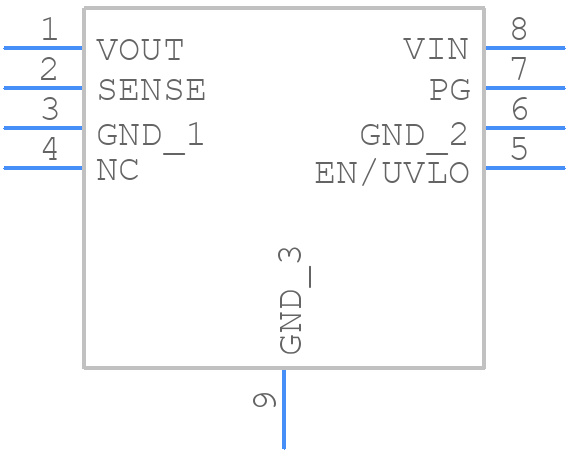

ADP7102ACPZ-2.5-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP7102ACPZ-2.5-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-8-5 (LFCSP_WD)
click to zoom
3D Models
ADP7102ACPZ-2.5-R7 - Analog Devices - 3D model - Small Outline No-lead - CP-8-5 (LFCSP_WD)
click to zoom

ADP7102ACPZ-2.5-R7 Details

  • Manufacturer Part Number:

    ADP7102ACPZ-2.5-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, MO-229WEED-4, LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-5

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    1 V

  • Dropout Voltage1-Nom:

    1 V

  • Input Voltage Absolute-Max:

    22 V

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    3.3 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max:

    0.0062625%

  • Load Regulation-Max:

    0.007475%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.3 A

  • Output Voltage1-Max:

    2.525 V

  • Output Voltage1-Min:

    2.45 V

  • Output Voltage1-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    3 mm

ADP7102ACPZ-2.5-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP7102ACPZ-2.5-R7 should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper pour connectivity to dissipate heat. Avoid routing high-current traces under the device, and use thermal vias to connect the top and bottom layers.
  • To ensure stability, follow the recommended component values and PCB layout guidelines in the datasheet. Additionally, ensure that the output capacitor has a low equivalent series resistance (ESR) and is placed close to the output pin. You can also add a small ceramic capacitor (e.g., 10nF) in parallel with the output capacitor to improve stability.
  • The maximum input voltage for the ADP7102ACPZ-2.5-R7 is 5.5V. Exceeding this voltage may damage the device. If your input voltage exceeds 5.5V, consider using a voltage regulator or a voltage divider to reduce the input voltage to a safe level.
  • The ADP7102ACPZ-2.5-R7 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. Ensure proper heat sinking and thermal management to maintain a safe operating temperature. Consult the datasheet for thermal derating information.
  • The output voltage ripple and noise can be estimated using the datasheet's equations and graphs. Consider the output capacitor's ESR, the switching frequency, and the inductor's value when calculating the ripple and noise. You can also use simulation tools or SPICE models to simulate the circuit and estimate the output voltage ripple and noise.
