ADP7102ARDZ-5.0-R7 - Analog Devices

Description: Linear Voltage Regulators 20V 300mA CMOS LDO Low Noise

Download ADP7102ARDZ-5.0-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

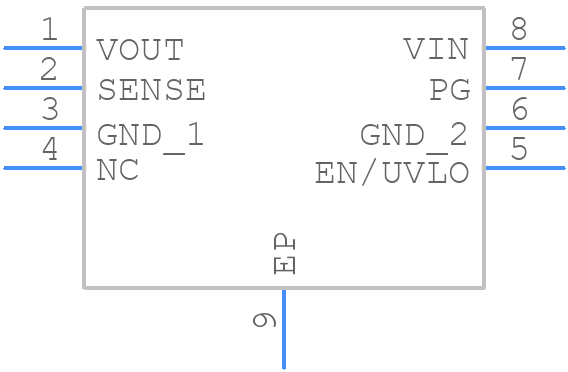

Symbol
ADP7102ARDZ-5.0-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP7102ARDZ-5.0-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RD-8-2
click to zoom
3D Models
ADP7102ARDZ-5.0-R7 - Analog Devices - 3D model - Small Outline Packages - RD-8-2
click to zoom

ADP7102ARDZ-5.0-R7 Details

  • Manufacturer Part Number:

    ADP7102ARDZ-5.0-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-012AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RD-8-2

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.325 V

  • Dropout Voltage1-Nom:

    1 V

  • Input Voltage Absolute-Max:

    22 V

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    3.3 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Line Regulation-Max:

    0.012525%

  • Load Regulation-Max:

    0.05%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.3 A

  • Output Voltage1-Max:

    5.05 V

  • Output Voltage1-Min:

    4.9 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    3.9 mm

ADP7102ARDZ-5.0-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, ensuring good thermal conductivity. A 4-layer PCB with a solid ground plane and a thermal relief pattern around the device can help dissipate heat efficiently.
  • To ensure stability and prevent oscillations, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, a low-ESR output capacitor and a high-quality input capacitor can help minimize oscillations. You can also consider adding a small ceramic capacitor (e.g., 10nF) in parallel with the output capacitor to improve stability.
  • The ADP7102ARDZ-5.0-R7 can withstand a maximum input voltage of 6.5V without damage. However, it's recommended to operate the device within the specified input voltage range (2.7V to 5.5V) for optimal performance and reliability.
  • The ADP7102ARDZ-5.0-R7 is rated for operation up to 125°C. However, it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. Ensure proper heat sinking and thermal design to prevent overheating and maintain reliability.
  • The output voltage accuracy and tolerance can be calculated using the formula: Output Voltage = (1.2V x (1 + (R1/R2))) ± (Output Voltage Tolerance). The output voltage tolerance is typically ±2% for the ADP7102ARDZ-5.0-R7. Consult the datasheet for more information on output voltage accuracy and tolerance calculations.
