ADP7104ARDZ-R7 - Analog Devices

Description: 20 V, 500 mA, Low Noise, CMOS LDO

Download ADP7104ARDZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

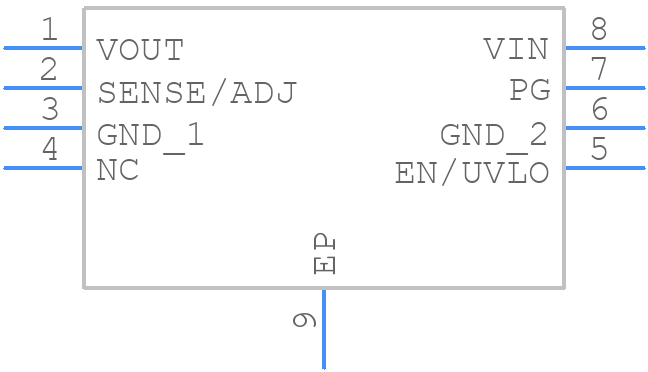

ADP7104ARDZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP7104ARDZ-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RD-8-4
click to zoom
3D Models
ADP7104ARDZ-R7 - Analog Devices - 3D model - Small Outline Packages - RD-8-4
click to zoom

ADP7104ARDZ-R7 Details

  • Manufacturer Part Number:

    ADP7104ARDZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    RD-8-2

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.55 V

  • Dropout Voltage1-Nom:

    0.35 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Line Regulation-Max (%/V):

    0.015

  • Load Regulation-Max(%):

    2%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    19.45 V

  • Output Voltage1-Min:

    1.22 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ADP7104ARDZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP7104ARDZ-R7 involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and ensure optimal performance.
  • To ensure stability, it's essential to follow the recommended compensation network and component values provided in the datasheet. Additionally, the output capacitor should be selected based on the output voltage and current requirements, and the input capacitor should be selected based on the input voltage and current requirements.
  • The ADP7104ARDZ-R7 can handle input voltages up to 36V, but it's recommended to operate within the specified input voltage range of 4.5V to 36V for optimal performance and reliability.
  • The ADP7104ARDZ-R7 is rated for operation up to 125°C, but it's recommended to derate the output current and voltage at higher temperatures to ensure reliability and prevent overheating.
  • To troubleshoot issues with the ADP7104ARDZ-R7, start by checking the input voltage, output voltage, and output current. Verify that the device is properly soldered and that the PCB layout is correct. Check for any signs of overheating, such as excessive temperature or burning smells. If the issue persists, consult the datasheet and application notes for troubleshooting guides and contact Analog Devices Inc. support for further assistance.
