ADP7118ACPZN1.8-R7 - Analog Devices

Description: 20 V, 200 mA, Low Noise, CMOS LDO Linear Regulator

Download ADP7118ACPZN1.8-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

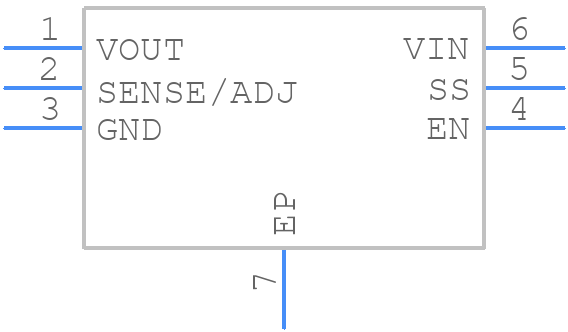

ADP7118ACPZN1.8-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP7118ACPZN1.8-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 6-Lead Lead Frame Chip Scale Package [LFCSP] 2.00 mm × 2.00 mm Body and 0.55 mm Package Height (CP-6-3)_
click to zoom
3D Models
ADP7118ACPZN1.8-R7 - Analog Devices - 3D model - Small Outline No-lead - 6-Lead Lead Frame Chip Scale Package [LFCSP] 2.00 mm × 2.00 mm Body and 0.55 mm Package Height (CP-6-3)_
click to zoom

ADP7118ACPZN1.8-R7 Details

  • Manufacturer Part Number:

    ADP7118ACPZN1.8-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    6

  • Manufacturer Package Code:

    CP-6-3

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Moisture Sensitivity Level:

    1

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

ADP7118ACPZN1.8-R7 Frequently Asked Questions (FAQs)

  • The maximum output current of the ADP7118 is 1.5A.
  • To ensure stability, it is recommended to use a minimum output capacitance of 10uF, and to place the capacitor close to the output pin. Additionally, a 1uF capacitor on the input pin can help to filter out noise.
  • The dropout voltage of the ADP7118 is typically 1.2V at an output current of 1A.
  • Yes, the ADP7118 is rated for operation up to 125°C, but the output current should be derated at higher temperatures to prevent overheating.
  • The output voltage of the ADP7118 can be adjusted by using a resistive divider network between the output pin and the adjust pin. The output voltage is determined by the ratio of the resistors.
