ADP7156ARDZ-2.5-R7 - Analog Devices

Description: LDO Voltage Regulators 3.3/5Vin 1.2A Ultra Low Noise LDO, Fixed

Download ADP7156ARDZ-2.5-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

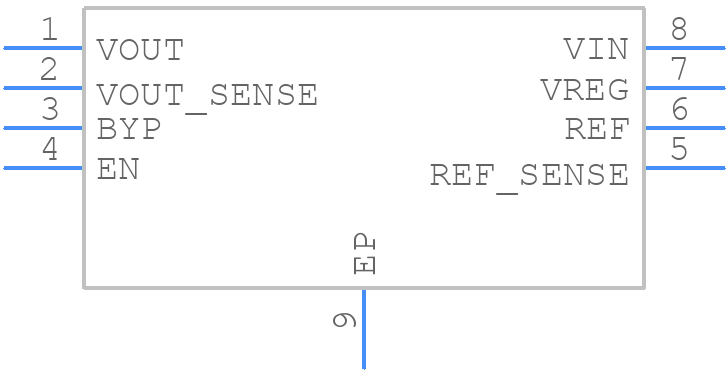

Symbol
ADP7156ARDZ-2.5-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP7156ARDZ-2.5-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RD-8-1_2023
click to zoom
3D Models
ADP7156ARDZ-2.5-R7 - Analog Devices - 3D model - Small Outline Packages - RD-8-1_2023
click to zoom

ADP7156ARDZ-2.5-R7 Details

  • Manufacturer Part Number:

    ADP7156ARDZ-2.5-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    RD-8-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-03-17

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.17 V

  • Input Voltage Absolute-Max:

    7 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    3 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Line Regulation-Max:

    0.00625%

  • Load Regulation-Max:

    0.08925%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1.2 A

  • Output Voltage1-Max:

    2.5375 V

  • Output Voltage1-Min:

    2.4625 V

  • Output Voltage1-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    1.5%

  • Width:

    3.9 mm

ADP7156ARDZ-2.5-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP7156 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor has a low ESR (Equivalent Series Resistance) and is placed close to the device. Additionally, avoid using long output traces and minimize the distance between the output capacitor and the load.
  • The ADP7156 can handle input voltages up to 5.5V, but it's recommended to operate within the specified input voltage range of 2.7V to 5.5V for optimal performance and reliability.
  • The ADP7156 is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It's recommended to derate the output current and ensure proper thermal management to prevent overheating.
  • The output voltage tolerance of the ADP7156 is specified as ±2.5% over the operating temperature range. To calculate the output voltage tolerance, multiply the nominal output voltage by the tolerance percentage (e.g., 2.5V x 2.5% = ±62.5mV).
