ADP7157ARDZ-01-R7 - Analog Devices

Description: 1.2 A, Ultralow Noise, High PSRR, Adjustable Output, RF Linear Regulator

Download ADP7157ARDZ-01-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

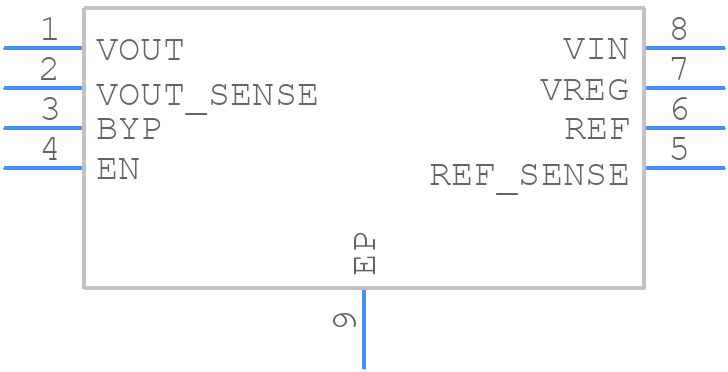

Symbol
ADP7157ARDZ-01-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP7157ARDZ-01-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RD-8-1)
click to zoom
3D Models
ADP7157ARDZ-01-R7 - Analog Devices - 3D model - Small Outline Packages - (RD-8-1)
click to zoom

ADP7157ARDZ-01-R7 Details

  • Manufacturer Part Number:

    ADP7157ARDZ-01-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RD-8-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-03-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    ADJUSTABLE

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Line Regulation-Max (%/V):

    0.1

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1.2 A

  • Output Voltage1-Max:

    1.8 V

  • Output Voltage1-Min:

    1.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ADP7157ARDZ-01-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP7157ARDZ-01-R7 should include a solid ground plane, separate analog and digital power domains, and careful routing of sensitive signals. Additionally, it's recommended to place the device close to the power source and use short, wide traces for the input and output capacitors.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input voltage with a capacitor and to use a low-impedance output capacitor.
  • The maximum input voltage that can be applied to the ADP7157ARDZ-01-R7 is 6.5V. Exceeding this voltage can cause damage to the device. It's recommended to use a voltage limiter or a transient voltage suppressor to protect the device from voltage spikes or surges.
  • The ADP7157ARDZ-01-R7 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's output current and voltage at high temperatures to ensure reliable operation.
  • To troubleshoot issues with the ADP7157ARDZ-01-R7, start by checking the input voltage, output voltage, and output current. Verify that the device is properly configured and that the recommended component values are used. Use an oscilloscope to check for noise or oscillations on the output voltage. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines.
