ADP7158ACPZ-2.5-R7 - Analog Devices

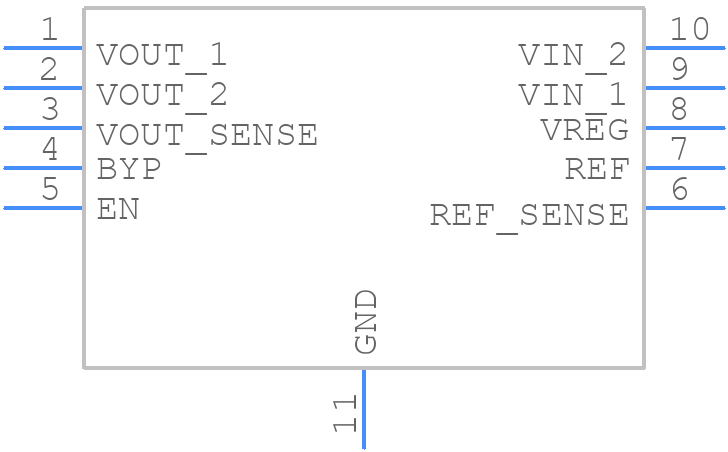

ADP7158ACPZ-2.5-R7 Details

• Manufacturer Part Number:

  ADP7158ACPZ-2.5-R7

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  LFCSP-10

• Pin Count:

  10

• Manufacturer Package Code:

  CP-10-9

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Date Of Intro:

  2016-03-17

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  0.28 V

• Dropout Voltage1-Nom:

  0.2 V

• Input Voltage Absolute-Max:

  7 V

• Input Voltage-Max:

  5.5 V

• Input Voltage-Min:

  3 V

• JESD-30 Code:

  S-PDSO-N10

• JESD-609 Code:

  e3

• Length:

  3 mm

• Line Regulation-Max:

  0.00625%

• Load Regulation-Max:

  0.014925%

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  10

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Output Current1-Max:

  2 A

• Output Voltage1-Max:

  2.5375 V

• Output Voltage1-Min:

  2.4625 V

• Output Voltage1-Nom:

  2.5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR, 7 INCH

• Peak Reflow Temperature (Cel):

  260

• Regulator Type:

  FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  0.85 mm

• Surface Mount:

  YES

• Technology:

  PMOS

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Voltage Tolerance-Max:

  1.5%

• Width:

  3 mm
