ADP8866ACPZ-R7 - Analog Devices

Description: LED Lighting Drivers 9 Channel LED Driver with Charge Pump

Download ADP8866ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

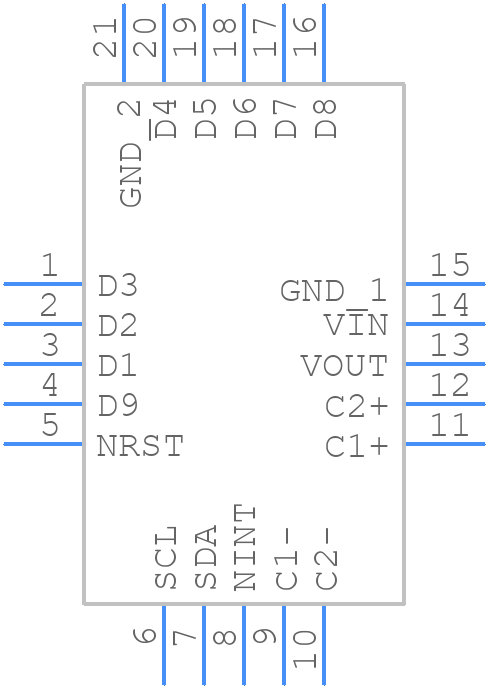

ADP8866ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP8866ACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP-20
click to zoom
3D Models
ADP8866ACPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - LFCSP-20
click to zoom

ADP8866ACPZ-R7 Details

  • Manufacturer Part Number:

    ADP8866ACPZ-R7

  • Source Url Status Check Date:

    2013-05-01 14:56:47.183

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-8

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Data Input Mode:

    SERIAL

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    9

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.5 V

  • Supply Voltage-Nom:

    3.6 V

  • Surface Mount:

    YES

  • Technology:

    DMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

  • fmax-Min:

    0.4 MHz

ADP8866ACPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP8866ACPZ-R7 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces connecting the device to the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the digital and analog signals separate.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor is properly sized and that the device is operated within its recommended operating conditions. It's also important to decouple the input and output pins properly to prevent oscillations.
  • The ADP8866ACPZ-R7 can handle input voltages up to 5.5V. However, it's recommended to operate the device within its recommended operating conditions to ensure optimal performance and reliability.
  • The ADP8866ACPZ-R7 is rated for operation up to 125°C. However, it's recommended to derate the device's performance and reliability at high temperatures. Consult the datasheet and application notes for more information on high-temperature operation.
  • To troubleshoot issues with the ADP8866ACPZ-R7, start by checking the input and output voltages, as well as the device's operating conditions. Verify that the device is properly powered and that the input and output capacitors are properly sized. Consult the datasheet and application notes for more troubleshooting tips and guidelines.
