ADPA9002ACGZN - Analog Devices

Description: GaAs, pHEMT, MMIC, Single Positive Supply,??DC to 10 GHz Power Amplifier

Download ADPA9002ACGZN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

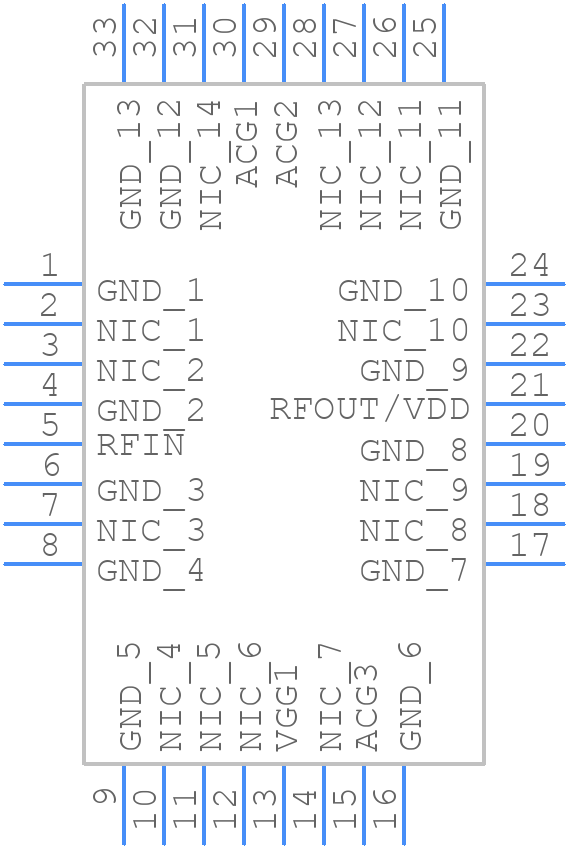

ADPA9002ACGZN - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADPA9002ACGZN - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CG-32-2
click to zoom
3D Models
ADPA9002ACGZN - Analog Devices - 3D model - Quad Flat No-Lead - CG-32-2
click to zoom

ADPA9002ACGZN Details

  • Manufacturer Part Number:

    ADPA9002ACGZN

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    32

  • Manufacturer Package Code:

    CG-32-2

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2019-10-11

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    13.5 dB

  • Input Power-Max (CW):

    25 dBm

  • Operating Frequency-Max:

    10000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

  • VSWR-Max:

    7

ADPA9002ACGZN Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise coupling.
  • Use a low-ESR capacitor (e.g., 10uF) between VCC and GND, and a 0.1uF capacitor between AVCC and AGND. Ensure the power supply is clean and regulated, and use a ferrite bead or inductor to filter out high-frequency noise.
  • The maximum input voltage is 5.5V, but it's recommended to keep the input voltage below 5V to ensure reliable operation and prevent damage to the device.
  • Use a low-noise power supply, keep the input and output traces short, and use a common-mode filter (e.g., a ferrite bead) on the input lines. Also, ensure the device is properly decoupled and the PCB is well-grounded.
  • The ADP9002ACGZN is rated for operation up to 125°C, but its performance may degrade at high temperatures. Ensure proper heat sinking and thermal management to maintain reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADPA9002ACGZN Overview

Use the download button to access the ADPA9002ACGZN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADPA9, or try a keyword search, such as RF/Microwave Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
