ADPD103BCPZ - Analog Devices

Description: ANALOG DEVICES - ADPD103BCPZ - Photometric Front End, 1.7 V-1.9 V supply, LFCSP-28

Download ADPD103BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

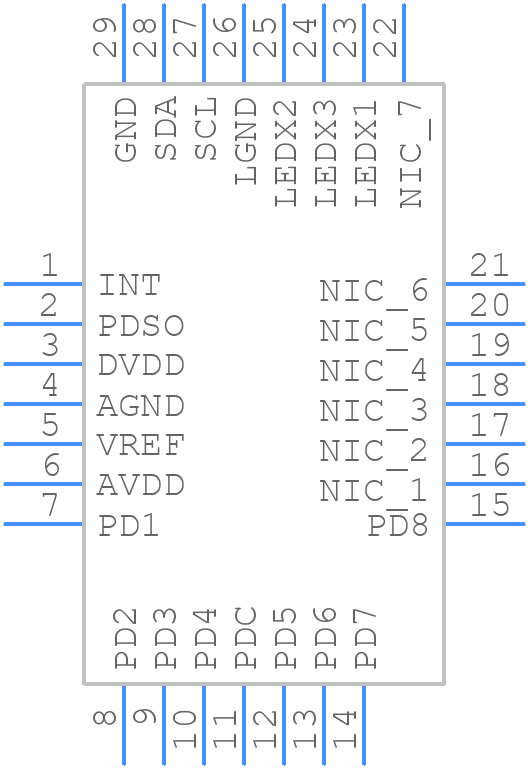

ADPD103BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADPD103BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-28-5_2022
click to zoom
3D Models
ADPD103BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-28-5_2022
click to zoom

ADPD103BCPZ Details

  • Manufacturer Part Number:

    ADPD103BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    FLCSP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    CP-28-5

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Analog Input Voltage-Max:

    5 V

  • Analog Input Voltage-Min:

    -5 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    R-XBGA-B16

  • Length:

    2.46 mm

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    4

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA16,3X6,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Sample Rate:

    0.00382 MHz

  • Seated Height-Max:

    0.56 mm

  • Supply Current-Max:

    1.8 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    1.4 mm

ADPD103BCPZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a low-ESR capacitor for decoupling and place it close to the device.
  • Ensure proper calibration, use a high-quality sensor, and maintain a stable temperature. Minimize noise and interference by using a shielded cable and keeping the device away from high-frequency sources. Use a low-pass filter to remove high-frequency noise.
  • The maximum cable length depends on the specific application and the type of cable used. As a general guideline, keep the cable length as short as possible (less than 1 meter) to minimize signal attenuation and noise pickup.
  • Yes, the ADPD103BCPZ can be used with non-invasive sensors, such as reflective sensors or transmissive sensors. However, the sensor selection and placement are critical to ensure accurate measurements.
  • Use a shielded cable, keep the device away from high-frequency sources, and use a low-pass filter to remove high-frequency noise. Ensure proper grounding and use a common-mode choke to reduce EMI.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

ADPD103BCPZ Overview

Use the download button to access the ADPD103BCPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADPD1, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
