ADPD103BCPZRL - Analog Devices

Description: AFE General Purpose 1ADC 14bit 1.8V 28-Pin LFCSP EP T/R

Download ADPD103BCPZRL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

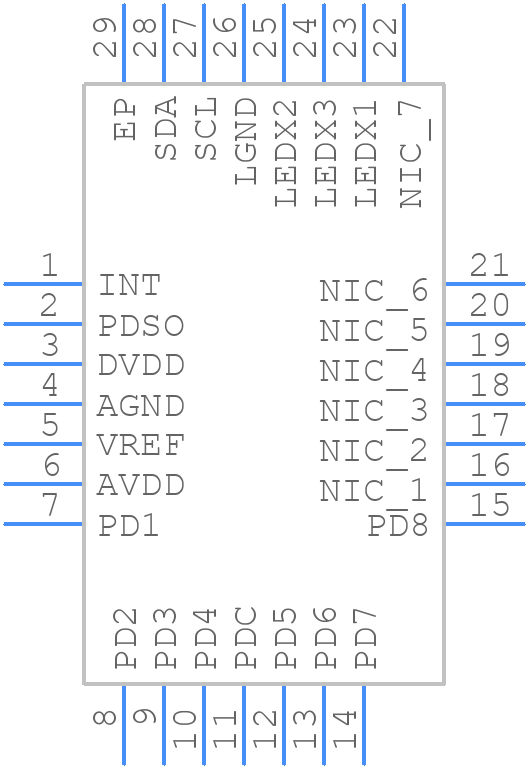

ADPD103BCPZRL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADPD103BCPZRL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-28-5
click to zoom
3D Models
ADPD103BCPZRL - Analog Devices - 3D model - Quad Flat No-Lead - CP-28-5
click to zoom

ADPD103BCPZRL Details

  • Manufacturer Part Number:

    ADPD103BCPZRL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    FLCSP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    CP-28-5

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Converter Type:

    DATA ACQUISITION DEVICE

  • JESD-30 Code:

    S-XQCC-N28

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    4

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HWQCCN

  • Package Equivalence Code:

    LCC28,.16SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFIL

  • Sample Rate:

    0.00382 MHz

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

ADPD103BCPZRL Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the ADPD103BCPZRL. It's recommended to follow the layout guidelines provided in the ADPD103BCPZRL evaluation board documentation, which includes keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the photodiode and the analog circuitry.
  • Calibration of the ADPD103BCPZRL involves adjusting the internal gain and offset registers to compensate for variations in the photodiode and analog circuitry. A calibration procedure is typically performed during manufacturing, but users can also perform calibration using the device's built-in calibration registers and an external calibration source.
  • The ADPD103BCPZRL is designed to operate in high-ambient-light environments, but it's not specified in the datasheet. According to Analog Devices, the device can handle ambient light intensities up to 100,000 lux, but this may vary depending on the specific application and optical filter used.
  • While the ADPD103BCPZRL is optimized for use with the integrated photodiode, it's possible to use it with an external photodiode or optical filter. However, this may require additional calibration and characterization to ensure accurate optical measurements. It's recommended to consult with Analog Devices or a qualified optical engineer for guidance on customizing the device for a specific application.
  • To ensure EMC with the ADPD103BCPZRL, follow proper PCB design and layout practices, such as using a solid ground plane, minimizing noise coupling, and using shielding or filtering to reduce electromagnetic interference (EMI). Additionally, ensure that the device is properly decoupled and bypassed, and that the system meets relevant EMC standards and regulations.
