ADPD105BCBZR7 - Analog Devices

Description: Analog Front End - AFE Optical AFE w/2 inputs, I2C interface

Download ADPD105BCBZR7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

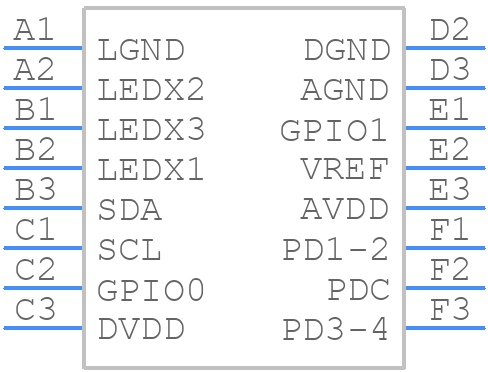

ADPD105BCBZR7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADPD105BCBZR7 - Analog Devices PCB footprint - BGA - BGA - CB-16-18
click to zoom
3D Models
ADPD105BCBZR7 - Analog Devices - 3D model - BGA - CB-16-18
click to zoom

ADPD105BCBZR7 Details

  • Manufacturer Part Number:

    ADPD105BCBZR7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    WLCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CB-16-18

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PBGA-B16

  • JESD-609 Code:

    e1

  • Length:

    2.46 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA16,3X6,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.56 mm

  • Supply Voltage-Max (Vsup):

    1.9 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.4 mm

ADPD105BCBZR7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a low-ESR capacitor for decoupling and place it close to the device.
  • Calibrate the device regularly, use a high-quality sensor, and ensure proper sensor placement. Also, consider the effects of temperature, humidity, and ambient light on the measurements.
  • The maximum cable length for the I2C interface is 10 meters (33 feet) with a maximum capacitance of 400 pF. However, it's recommended to keep the cable length as short as possible to minimize signal degradation.
  • The ADPD105BCBZR7 is rated for operation up to 85°C (185°F). However, the device's accuracy and reliability may degrade at higher temperatures. Consider using a heat sink or a thermal management system to maintain a safe operating temperature.
  • Check the power supply voltage, ensure proper connections, and verify the I2C communication. Use a logic analyzer or oscilloscope to debug the I2C bus. Consult the datasheet and application notes for troubleshooting guides and FAQs.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADPD105BCBZR7 Overview

Use the download button to access the ADPD105BCBZR7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADPD1, or try a keyword search, such as Other Consumer ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.

Parts related to ADPD105BCBZR7

Showing 0 results
