ADPD1080WBCPZR7 - Analog Devices

Description: Analog Front End - AFE Optical AFE for Health Monitoring

Download ADPD1080WBCPZR7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

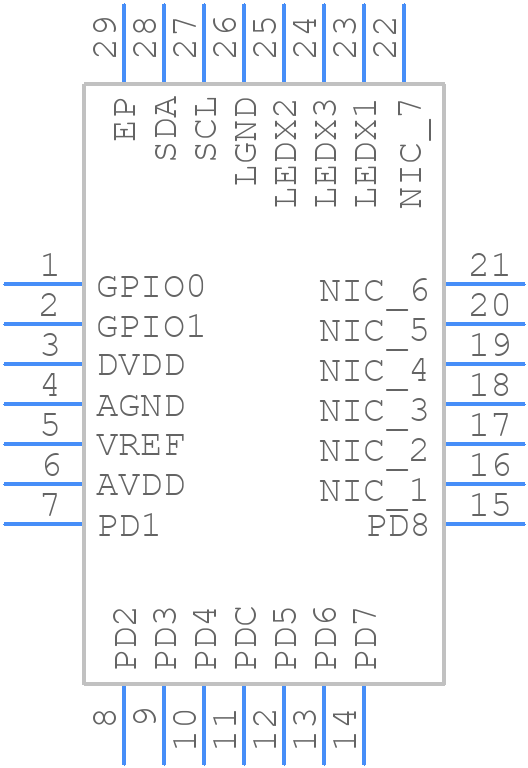

ADPD1080WBCPZR7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADPD1080WBCPZR7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-28-5
click to zoom
3D Models
ADPD1080WBCPZR7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-28-5
click to zoom

ADPD1080WBCPZR7 Details

  • Manufacturer Part Number:

    ADPD1080WBCPZR7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    CP-28-5

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-10-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-XQCC-N28

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.16SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    1.9 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

ADPD1080WBCPZR7 Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the ADPD1080WBCPZR7. It's recommended to follow the layout guidelines provided in the ADPD1080 evaluation board documentation and to keep the analog and digital sections separate. Additionally, ensure that the power supply lines are decoupled and that the sensor is placed in a quiet area of the board.
  • Calibration of the ADPD1080WBCPZR7 involves adjusting the gain and offset of the sensor. This can be done using the ADPD1080 evaluation software, which provides a calibration wizard. The wizard guides the user through the calibration process, which involves taking measurements with the sensor in different conditions.
  • The maximum distance between the ADPD1080WBCPZR7 and the photodiode depends on the specific application and the type of photodiode used. As a general rule, it's recommended to keep the distance as short as possible (less than 10 mm) to minimize signal loss and ensure optimal performance.
  • Yes, the ADPD1080WBCPZR7 can be used with different types of photodiodes, but the performance may vary. The device is optimized for use with the S9252-01 photodiode, but it can be used with other photodiodes that have similar characteristics. However, the user may need to adjust the gain and offset settings to optimize the performance.
  • Noise and interference can be handled using various techniques, such as filtering, shielding, and grounding. The ADPD1080WBCPZR7 has a built-in filter, but additional filtering may be necessary depending on the application. It's also important to ensure that the power supply lines are decoupled and that the sensor is placed in a quiet area of the board.
