ADPD4000BCBZR7 - Analog Devices

Description: Sensor Interface Multi-modal Optical AFE, SPI

Download ADPD4000BCBZR7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

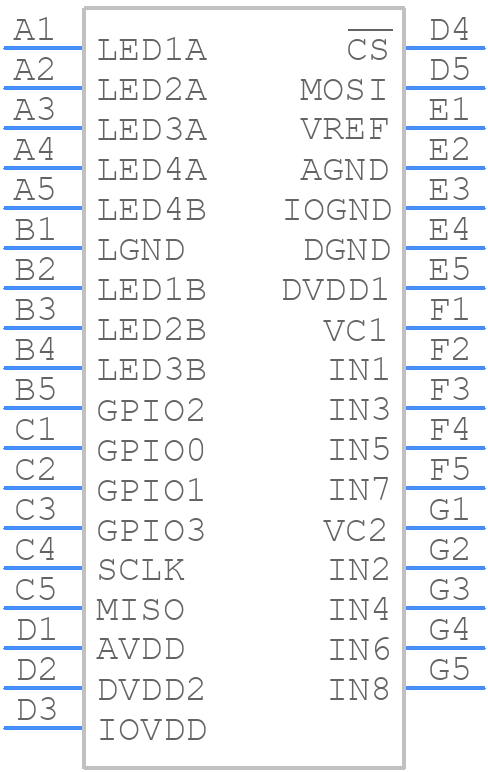

ADPD4000BCBZR7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADPD4000BCBZR7 - Analog Devices PCB footprint - BGA - BGA - 35-Ball [WLCSP]
click to zoom
3D Models
ADPD4000BCBZR7 - Analog Devices - 3D model - BGA - 35-Ball [WLCSP]
click to zoom

ADPD4000BCBZR7 Details

  • Manufacturer Part Number:

    ADPD4000BCBZR7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-35

  • Pin Count:

    35

  • Manufacturer Package Code:

    CB-35-2

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PBGA-B35

  • Length:

    3.11 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    35

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA35,5X7,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.56 mm

  • Supply Voltage-Max (Vsup):

    1.9 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.14 mm

ADPD4000BCBZR7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a low-ESR capacitor for decoupling and place it close to the device.
  • Optimize the device's performance by selecting the correct gain setting, adjusting the LED current, and fine-tuning the ADC sampling rate. Consult the datasheet and application notes for guidance on optimizing performance for your specific application.
  • The ADPD4000 can tolerate ambient light intensities up to 100,000 lux. However, it's recommended to use an optical filter or shielding to minimize the impact of ambient light on the device's performance.
  • While the ADPD4000 is optimized for 660nm LEDs, it can be used with LEDs of other wavelengths. However, the device's sensitivity and accuracy may be affected. Consult the datasheet and application notes for guidance on using the ADPD4000 with non-standard LEDs.
  • To ensure EMC, follow proper PCB layout and design practices, use a shielded enclosure, and minimize the length of cables and wires. Consult the datasheet and application notes for guidance on EMC considerations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADPD4000BCBZR7 Overview

Use the download button to access the ADPD4000BCBZR7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADPD4, or try a keyword search, such as Other Signal Circuits
