ADR01WARZ-R7 - Analog Devices

Description: Ultracompact, Precision 10.0 V Voltage Reference

Download ADR01WARZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

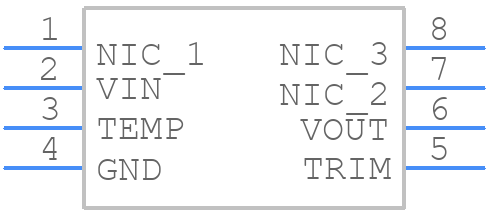

Symbol
ADR01WARZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADR01WARZ-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead Standard Small Outline Package [SOIC_N] Narrow Body (R-8)
click to zoom
3D Models
ADR01WARZ-R7 - Analog Devices - 3D model - Small Outline Packages - 8-Lead Standard Small Outline Package [SOIC_N] Narrow Body (R-8)
click to zoom

ADR01WARZ-R7 Details

  • Manufacturer Part Number:

    ADR01WARZ-R7

  • Source Url Status Check Date:

    2013-05-01 14:56:47.202

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    10.014 V

  • Output Voltage-Min:

    9.986 V

  • Output Voltage-Nom:

    10 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    12 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    10 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    YES

  • Voltage Tolerance-Max:

    0.1%

  • Width:

    3.9 mm

ADR01WARZ-R7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a low-ESR capacitor for decoupling and place it close to the device.
  • Use a high-quality, low-noise power supply and decouple the input voltage with a 10uF capacitor. Ensure the input voltage is within the recommended range (2.5V to 5.5V). Also, use a buffer amplifier if the output current exceeds 5mA.
  • The thermal resistance of the SOT23 package is approximately 240°C/W. High temperatures can affect the voltage reference output accuracy and long-term stability. Ensure good airflow and consider using a heat sink or thermal pad if the device is expected to operate in high-temperature environments.
  • Yes, the ADR01WARZ-R7 is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard and is designed to operate in harsh environments. However, ensure that the device is used within its recommended operating conditions and follow proper design and testing guidelines.
  • Check the input voltage, decoupling, and PCB layout. Verify that the device is properly soldered and there are no shorts or opens on the PCB. Use an oscilloscope to measure the output voltage and check for noise or oscillations. Consult the datasheet and application notes for troubleshooting guidelines.
