ADR1000AHZ - Analog Devices

Description: Oven-Compensated, Buried Zener, 6.62 V Voltage Reference

Download ADR1000AHZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

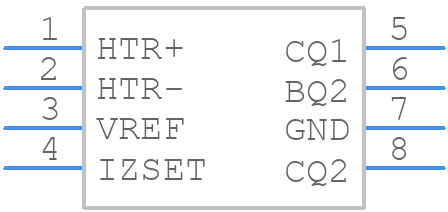

ADR1000AHZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADR1000AHZ - Analog Devices PCB footprint - Other - Other - 8-Lead Metal Can [TO-99] (H-08)
click to zoom
3D Models
ADR1000AHZ - Analog Devices - 3D model - Other - 8-Lead Metal Can [TO-99] (H-08)
click to zoom

ADR1000AHZ Details

  • Manufacturer Part Number:

    ADR1000AHZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    H-08-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    O-MBCY-W8

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    6.67 V

  • Output Voltage-Min:

    6.57 V

  • Output Voltage-Nom:

    6.62 V

  • Package Body Material:

    METAL

  • Package Code:

    BCY

  • Package Equivalence Code:

    CAN8,.2

  • Package Shape:

    ROUND

  • Package Style:

    CYLINDRICAL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    0.2 ppm/°C

  • Terminal Form:

    WIRE

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.755%
