ADR127AUJZ-REEL7 - Analog Devices

Description: ANALOG DEVICES - ADR127AUJZ-REEL7 - VOLTAGE REF, SERIES, 1.25V, TSOT-6

Download ADR127AUJZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

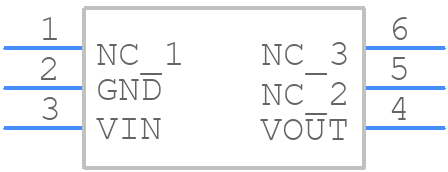

Symbol
ADR127AUJZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADR127AUJZ-REEL7 - Analog Devices PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - 6-Lead Thin Small Outline
click to zoom
3D Models
ADR127AUJZ-REEL7 - Analog Devices - 3D model - SOT23 (6-Pin) - 6-Lead Thin Small Outline
click to zoom

ADR127AUJZ-REEL7 Details

  • Manufacturer Part Number:

    ADR127AUJZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-193AA, TSOT-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    UJ-6

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    1.253 V

  • Output Voltage-Min:

    1.247 V

  • Output Voltage-Nom:

    1.25 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    TSOP6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    25 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.24%

  • Width:

    1.6 mm

ADR127AUJZ-REEL7 Frequently Asked Questions (FAQs)

  • For optimal performance, it's recommended to follow Analog Devices' PCB layout guidelines, including using a solid ground plane, minimizing trace lengths, and using thermal vias to dissipate heat. A thermal pad on the bottom of the package can also be connected to a heat sink or a thermal plane to improve heat dissipation.
  • To ensure accurate voltage reference output, it's essential to follow proper PCB design and layout guidelines, use a stable power supply, and minimize noise coupling. Additionally, consider using a voltage reference with a low temperature coefficient, such as the ADR127AUJZ-REEL7, and calibrate the system during production to account for any initial voltage offset.
  • The recommended input capacitance is 10nF to 100nF, and the recommended output capacitance is 10nF to 1uF. However, the optimal capacitance values may vary depending on the specific application and noise environment. It's recommended to experiment with different capacitance values to find the optimal configuration for your system.
  • To minimize noise and interference, use proper PCB design and layout techniques, such as separating analog and digital grounds, using shielding, and minimizing trace lengths. Additionally, consider using noise-reducing components, such as ferrite beads or common-mode chokes, and follow proper grounding and shielding practices.
  • The recommended power-up sequence is to power up the voltage reference (VREF) before the analog-to-digital converter (ADC) or digital-to-analog converter (DAC). During power-down, it's recommended to power down the ADC or DAC before the voltage reference. This sequence helps prevent unwanted voltage transients and ensures proper system operation.
