ADR130AUJZ-REEL7 - Analog Devices

Description: Voltage References Pin Configurable precision Low Voltage

Download ADR130AUJZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

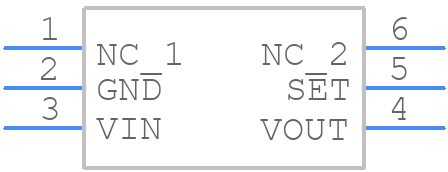

Symbol
ADR130AUJZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADR130AUJZ-REEL7 - Analog Devices PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - UJ-6 (TSOT)
click to zoom
3D Models
ADR130AUJZ-REEL7 - Analog Devices - 3D model - SOT23 (6-Pin) - UJ-6 (TSOT)
click to zoom

ADR130AUJZ-REEL7 Details

  • Manufacturer Part Number:

    ADR130AUJZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSOT-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    UJ-6

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    0.5V REFERENCE IS ALSO POSSIBLE

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    1.007 V

  • Output Voltage-Min:

    0.993 V

  • Output Voltage-Nom:

    1 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    TSOP6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temp Coef of Voltage-Max:

    50 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.7%

  • Width:

    1.6 mm

ADR130AUJZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADR130AUJZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • The ADR130AUJZ-REEL7 is a precision voltage reference and does not require calibration. However, it's essential to follow proper PCB layout and decoupling guidelines to ensure accurate output. Additionally, the device should be operated within its specified temperature range.
  • A 10uF to 22uF decoupling capacitor is recommended, placed as close as possible to the device's power pins. The capacitor should be a low-ESR type, such as an X5R or X7R dielectric, to minimize noise and ensure stable operation.
  • The ADR130AUJZ-REEL7 has a built-in power-on reset circuit that ensures a stable output voltage during power-up. During power-down, the device's output voltage will decay rapidly to zero. It's essential to ensure a controlled power-up and power-down sequence to prevent unwanted voltage transients.
  • The thermal resistance of the ADR130AUJZ-REEL7 package is typically around 120°C/W. This means that the device's junction temperature will increase by 120°C for every watt of power dissipated. It's essential to ensure good thermal management, such as using a heat sink or a thermally conductive PCB, to maintain the device's performance and reliability.
