ADR291GR - Analog Devices

Description: Voltage Reference, Fixed, 2.5V, 8 Pin, Plastic, SOP

Download ADR291GR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

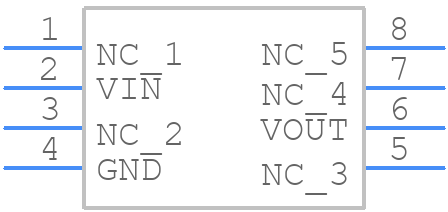

ADR291GR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADR291GR - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - ADR291GR
click to zoom
3D Models
ADR291GR - Analog Devices - 3D model - Small Outline Packages - ADR291GR
click to zoom

ADR291GR Details

  • Manufacturer Part Number:

    ADR291GR

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    MS-012AA, SOIC-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e0

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    2.506 V

  • Output Voltage-Min:

    2.494 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    2.8 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temp Coef of Voltage-Max:

    30 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.24%

  • Width:

    3.9 mm

ADR291GR Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADR291GR involves keeping the input and output traces short and separate, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To ensure accurate voltage regulation, make sure to decouple the input and output pins with suitable capacitors, use a stable input voltage, and minimize noise and ripple on the input voltage. Also, ensure that the output voltage is within the specified range.
  • The ADR291GR can provide up to 10mA of output current. However, it's recommended to limit the output current to 5mA or less to ensure stable operation and minimize power dissipation.
  • During power-up, the ADR291GR has a soft-start feature that ramps up the output voltage to prevent overshoots and minimize inrush current. During power-down, the output voltage decays rapidly to prevent back-feeding of the input voltage.
  • The ADR291GR is rated for operation up to 125°C, making it suitable for high-temperature applications. However, the device's accuracy and stability may degrade at higher temperatures, so it's essential to consider the specific application requirements.
