- Part Number ADR293GRZ
- Manufacturer Analog Devices
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - (R-8)
- Released Date Dec 28, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
ADR293GRZ Details
-
Manufacturer Part Number:
ADR293GRZ
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
Part Package Code:
SOIC
-
Package Description:
SOIC-8
-
Pin Count:
8
-
Manufacturer Package Code:
R-8
-
Country Of Origin:
Philippines
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
ADR293GRZ Frequently Asked Questions (FAQs)
-
A good PCB layout for the ADR293GRZ involves keeping the device away from high-current carrying traces, using a solid ground plane, and minimizing the distance between the device and the decoupling capacitors. Additionally, it's recommended to use a star-ground configuration and to avoid routing digital signals near the device.
-
To ensure proper decoupling, use a 10uF ceramic capacitor in parallel with a 100nF ceramic capacitor, both connected as close as possible to the device's power pins. These capacitors help filter out high-frequency noise and ensure stable operation.
-
The recommended input voltage range for the ADR293GRZ is 4.5V to 18V. The output voltage remains stable and regulated as long as the input voltage is within this range. However, if the input voltage drops below 4.5V, the output voltage may not be regulated, and if it exceeds 18V, the device may be damaged.
-
The ADR293GRZ's output voltage has a typical temperature coefficient of 10ppm/°C. This means that for every 1°C change in temperature, the output voltage will change by approximately 10ppm. This temperature coefficient is relatively low, ensuring a stable output voltage across a wide temperature range.
-
Yes, the ADR293GRZ is suitable for high-reliability and aerospace applications. It is qualified to the relevant standards, including MIL-PRF-38535, and is available in a hermetically sealed ceramic package. Additionally, it is manufactured in accordance with Analog Devices' quality management system, which is certified to AS9100 and ISO 9001.
Trust Checks
Community Provided
System Verified
Community Approved
ADR293GRZ Overview

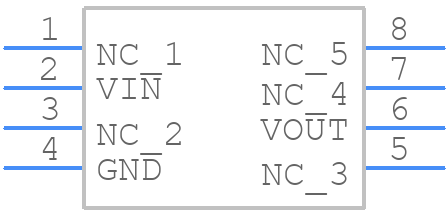

Use the download button to access the ADR293GRZ schematic symbol, PCB footprint, and 3D model.
