ADR3412ARJZ-R7 - Analog Devices

Description: Micropower, High Accuracy Voltage References

Download ADR3412ARJZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

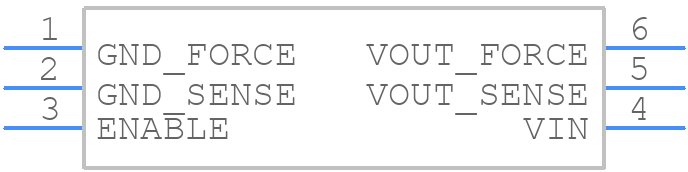

ADR3412ARJZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADR3412ARJZ-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RJ-6
click to zoom
3D Models
ADR3412ARJZ-R7 - Analog Devices - 3D model - Small Outline Packages - RJ-6
click to zoom

ADR3412ARJZ-R7 Details

  • Manufacturer Part Number:

    ADR3412ARJZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOT-23, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    RJ-6

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    1.2012 V

  • Output Voltage-Min:

    1.1988 V

  • Output Voltage-Nom:

    1.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSOP6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    2.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temp Coef of Voltage-Max:

    8 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.1%

  • Width:

    1.6 mm

ADR3412ARJZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADR3412ARJZ-R7 involves keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper biasing and configuration, refer to the datasheet for the recommended voltage and current settings. Additionally, consider the output voltage range, output current capability, and noise requirements of your application. You may also need to add external components such as resistors, capacitors, and inductors to optimize performance.
  • The ADR3412ARJZ-R7 has a maximum junction temperature of 150°C. To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and avoid high ambient temperatures. You can also use thermal interface materials to improve heat transfer between the device and the heat sink.
  • To troubleshoot issues with the ADR3412ARJZ-R7, start by verifying the input voltage, output voltage, and output current. Check for proper PCB layout, decoupling, and component selection. Use an oscilloscope to measure the output voltage and current waveforms. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
  • Yes, the ADR3412ARJZ-R7 is susceptible to electromagnetic interference (EMI). To ensure compliance with regulatory standards, use proper PCB layout techniques, add EMI filters or shielding if necessary, and follow the guidelines outlined in the datasheet and application notes.
